H07RN F 3G Cable

H07RN-F 3G95

H07RN-F 3G95

  • Brand Name: HuaDong Cable
  • Name: h07rn-f 3g95
  • Cable Type: Rubber power and control cable
  • Number of Conductors: 3
  • Temperature range: -25°C to +60°
  • Nominal Voltage: 450 / 750 V
  • Email: huadong@hdcablegroup.com
  • Discount Price

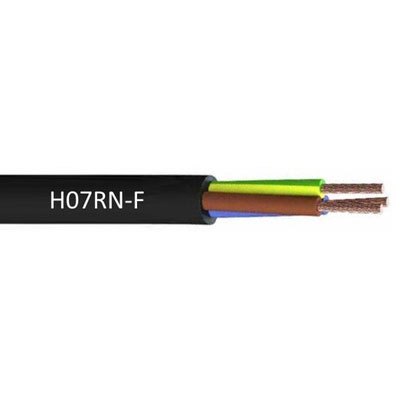

What is H07RN-F 3G95 Rubber Cable?


H07RN-F 3G95 Flexible Rubber Cable is a heavy-duty rubber flexible trailing cable for power supply with a voltage rating of 450/750V designed to provide high flexibility and to withstand chemical, mechanical and thermal stresses. It is suitable for applications such as handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. H07RN-F 3G95 Rubber Cable as part of rubber flexible cables, the tough rubber sheath also makes this cable suitable for use in drainage and water treatment, cold or refrigerated environments, and severe industrial environments.



H07RN-F 3G95 Rubber Cable Specifications:


Number of cores 3
Conductor cross-section 95mm²
Minimum outer diameter 43.3mm
Maximum outer diameter 54.0mm
Approximate weight 4170kg/km
Rated Voltage Uo/U (Um) 450 / 750 V
Voltage drop, single phase 0.5V/A.km
Permissible current rating in open air 352A




H07RN-F 3G95 Rubber Cable Application


Indoor or outdoor use for the power supply of mobile or fixed equipment like mobile plants operating on building sites, pumps, portable toolings, power engines, cables reels, etension cables... Especially recommended in case of equipment with explosion risks. Cable particulary suitable for the stripping force on automatic machines. Good performance in casual oil or grease contact.



H07RN-F Rubber Cable Core colours


2 cores (X) = Brown + Blue
3 cores (G) = Green-Yellow + Brown + Blue
3 cores (X) = Brown + Black + Grey
4 cores (G) = Green-Yellow + Brown + Black + Grey
4 cores (X) = Blue + Brown + Black + Grey
5 cores (G) = Green-Yellow + Blue + Brown +  Black + Grey
5 cores (X) =  Blue + Brown +  Black + Grey + Black



H07RN-F 3G95 Rubber Cable why choose HuaDong?


Huadong Cable Group as a special H07RN-F Rubber Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in H07RN-F 3G95 Rubber Cable, but also we have 15 senior engineers, they can free design the H07RN-F Rubber Cable size according to client’s requirement.
Our H07RN-F 3G95 Rubber Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.




Any cable inquiry please feel free to contact us.
