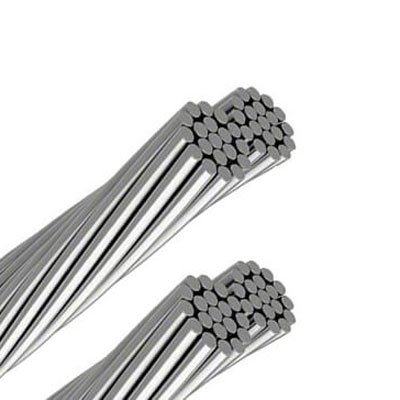

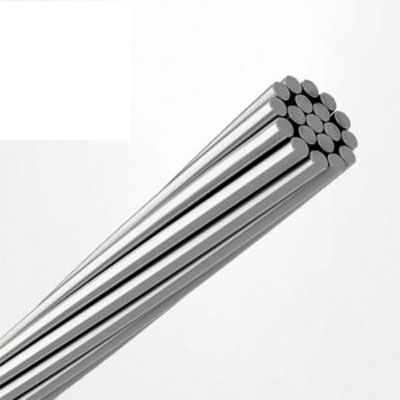

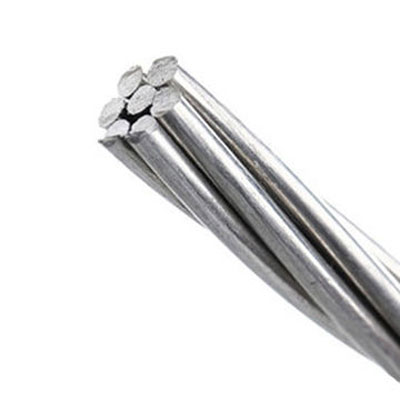

927.2 MCM Greeley AAAC Cable Applications:
927.2 MCM Greeley AAAC Cable All Aluminum Alloy Conductor is a bare conductor used for overhead transmission as well as for primary and secondary distribution.927.2 MCM Greeley AAAC Cable are used as a bare conductor cable on aerial circuits that require a larger mechanical resistance than the AAC and a better corrosion resistance than the ACSR. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR. Capable of handling extremely high voltages, this overhead transmission wire is also preferred in scenarios when heavy ampacity is needed. This cable is most ideal for high voltage use in coastal areas, or areas with high winds or frequent storms.
927.2 MCM Greeley AAAC Cable Specifications:
Size MCM: 927.2
Strands: 37
Approx. EC Cond. with Equivalent Resistance: 795.0
Diameter Inches: Indiv. Wire O.D: 0.1583
Diameter Inches: Comp. Cable: 1.1080
Cross Sectional Area (sq. inches): 0.7282
New Weight lb/1000FT: 870.4
Rated Strength (lbs.): 30,500
Ampacity: 908 Amps
927.2 MCM Greeley AAAC Cable Features
high strength to weight ratio
better sag characteristics
improved electrical properties
excellent resistance to corrosion
927.2 MCM Greeley AAAC Cable Standards:
ASTM B-398: Aluminum Alloy 6201-T81 aluminum alloy conductors
ASTM B-399: Concentric Lay stranded 6201-T81 aluminum alloy conductors
927.2 MCM Greeley AAAC Cable Construction:
Conductors: 6201-T81 aluminum alloy conductors. 6201-T81 aluminum alloy is a high strength aluminum alloy for added durability and reduced sag when stranded overhead. 6201-T81 aluminum alloy is also more resistant to abrasion than 1350-H19 aluminum.
Stranding: Helically stranded.
Ampacity: Medium to high voltages.
927.2 MCM Greeley AAAC Cable why choose HuaDong?
As a professional 927.2 MCM Greeley AAAC Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 927.2 MCM Greeley AAAC Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
