4 Core CY Control Cable also known as LiYCY Cable is a PVC insulated and sheathed Type CY Screened cable and is suitable for use as a signal and data control cable in control circuits, machine tools, computer systems, industrial plants, production lines and electronics. The tinned copper wire screen offers protection from electromagnetic interference (EMI) and reduces electromagnetic radiation (EMR).
4 Core CY Control Cable 10mm2 Specifications
|
Attribute |
Value |
|
Number of Cores |
4 |
|
Cross Sectional Area |
10 mm² |
|
Current Rating |
61 A |
|
Outer Diameter |
19.6mm |
|
Voltage Rating |
600/1000 V |
|
Sheath Colour |
Transparent |
|
American Wire Gauge |
7 AWG |
|
Earth Cable |
Yes |
|
Minimum Operating Temperature |
-40°C |
|
Maximum Operating Temperature |
+70°C |
|
Sheath Material |
Polyvinyl Chloride PVC |
|
Core Strands |
80/0.40 mm |
|
Filler Material |
Non-Wicking Filler |
|
Insulation Material |
PE |
|
Conductor Resistance |
1.91 Ω/km |
|
Screened/Unscreened |
Screened |
|
Screen Type |
Aluminium Foil, Tinned Copper Braid |
|
Bedding Material |
Aluminium Foil |
|
Conductor Material |
Copper |
|
Minimum Bend Radius |
Fixed - 4 x D Occasional Flexing - 15 x D |
4 Core CY Control Cable Application
Industrial machinery and machine tools
Measurement, control and electrical applications
Food production and packaging machinery
Very suitable for oily wet areas within machine tools and transfer lines that are subject to normal mechanical stress
Outdoor use is possible within the indicated operating temperature range
4 Core CY Control Cable Features
High oil-resistance
Abrasion and notch-resistant
EMC-compliant
Low-adhesive surface
Resistant to hydrolysis and microbes
CY Control Cable Core identification:
Single core: blue
2 core: brown & blue
3 core: brown, blue & green/yellow

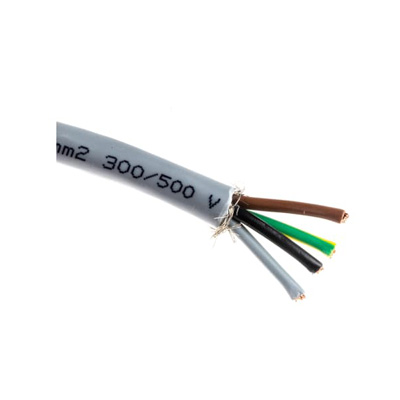

4 core: brown, grey, black & green/yellow
5 core: brown, blue, grey, black & green/yellow
7 core and above: black cores with white number inc Green/Yellow
