11kV Medium Voltage Power Cables are an important component of any electrical system, providing reliable and efficient power distribution. They come in a variety of configurations and sizes for various applications, and are designed to meet the requirements of both commercial and industrial facilities. 11kV Medium Voltage Power Cables are used in switching stations, substations, power plants, offices, hospitals, schools and other public spaces. These cables provide a safe, fast and versatile connection between the source of power to the point of usage. They are capable of withstanding high temperatures and heavy mechanical stress while delivering maximum performance. 11kV Medium Voltage Power Cables are essential components for meeting code requirements in any modern electrical network.
11kV Medium Voltage Power Cables Feature
11kV medium voltage power cables are designed specifically to carry electric power between two points in a commercial or industrial environment. They are commonly used in applications such as transmission lines, distribution networks, and substations. These cables feature heavy-duty construction to ensure reliable operation and long-term performance under harsh conditions.
The insulation material on these cables is typically XLPE (cross-linked polyethylene), which provides superior electrical properties for the cable, including high dielectric strength, low water absorption, excellent heat resistance, and superior chemical resistance. Additionally, these cables feature an armor shield that helps to protect the insulation from mechanical damage and environmental exposure. This armor also serves as an effective grounding conductor for the cable.
For added protection against abrasion and impact damage, some 11kV medium voltage power cables are jacketed with additional layers of insulation or protective materials such as PVC or TPU jacketing compounds. This jacketing material helps protect the cable from the elements while providing flexibility and easier installation in tight spaces.
To improve system safety and reduce maintenance costs, these cables can be equipped with additional features such as ground fault detection systems (GFDs) designed to detect current flowing outside of the intended circuit path due to wire faults or other problems. GFDs can provide quick shutdowns when necessary to prevent further damage to equipment and reduce downtime.
Overall, 11kV medium voltage power cables offer a wide range of benefits that make them an ideal choice for many applications requiring reliable electrical connections over long distances. Their robust construction ensures long-lasting performance under even the toughest conditions while their various features provide additional safety measures for added protection against faults and other issues.

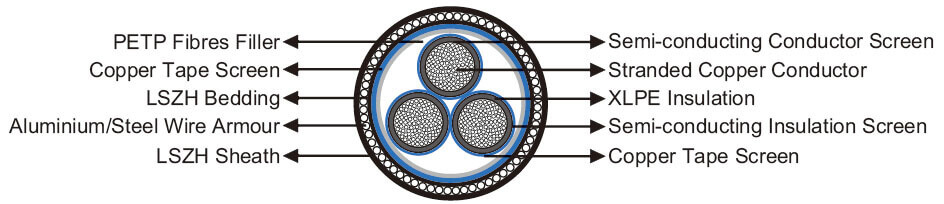

11kV Medium Voltage Power Cables Construction
|
|
BS6622 |
BS7835 |
|
Conductor |
Class 2 stranded copper or Class 1 solid /Class 2 stranded aluminium |
|
Conductor Screen |
Semi-conductive Cross-Linked Polyethylene (XLPE) |
|
Insulation |
XLPE |
|
Insulation Screen |
Semi-conductive XLPE |
|
Metallic Screen |
Individual or overall copper tape |
|
Filler |
Polyethylene Terephthalate (PET) fibres |
|
Separator |
Binding Tape |
|
Bedding |
Polyvinyl Chloride (PVC) |
Low Smoke Zero Halogen (LSZH) compound |
|
Armour |
Single core cable: Aluminium Wire Armour (AWA)
Multicore cable: Steel Wire Armour (SWA |
|
Sheath |
PVC or Medium Density Polyethylene (MDPE) |
LSZH |
11kV Medium Voltage Power Cables Application
11kV medium voltage power cables are designed for the transmission of electrical energy from a power source to a distribution point or user. These cables can handle currents up to 3300 A and have insulation layers to protect against high voltage shocks. They are also highly resistant to various environmental conditions such as heat, cold, moisture and sunlight.
The applications of 11kV medium voltage power cables include: industrial installations; grids for the distribution of electricity; and networks for the delivery of electricity to homes and commercial buildings. They are often used in overhead lines, underground conduit, direct burial applications or submarine installations.
These cables provide greater flexibility in terms of design options, allowing for quick and easy installation with minimal disruption. This is especially useful in areas where there are difficult access points or when an area needs to be repaired quickly after a natural disaster. Additionally, these cables come with a range of accessories such as support structures, clamps and connectors that make them easier to install and maintain over time.
11kV medium voltage power cables also offer superior safety benefits compared with other types of cable due to their increased levels of insulation and protection against electric shock hazards. Furthermore, they can be designed using advanced materials that offer improved performance in extreme environments, such as those found in offshore drilling rigs or deep-sea operations.
11kV Medium Voltage Power Cables have been shown to be an efficient, durable and reliable choice when considering power cable needs. These cables are capable of handling higher voltages while also providing greater flexibility in design. The features and applications of these cables make them suitable for a variety of applications and environments. With their wide range of uses, the 11kV Medium Voltage Power Cables offer an ideal solution for many power requirements.
