8-8-8-8 Aluminum SER Service Entrance Cable Applications:
8-8-8-8 Aluminum SER Service Entrance Cable is employed at the point of transmission where secondary distribution is sent from the service drop into a residence or building. The cable delivers energy to the meter base and then to the building’s distribution panel. It can carry voltages up to 600 volts and function in temperatures up to 90°C. SE should be used above ground.
Also Known As:
8-8-8-8 underground service entrance cable, 8-8-8-8 type r cable, 8-8-8-8 service entrance cable, 8-8-8-8 ser cable, 8-8-8-8 aluminum ser cable, 8-8-8-8 aluminum service entrance cable, 8-8-8-8 electrical entrance cable, 8-8-8-8 direct burial service entrance cable.
8-8-8-8 Aluminum SER Service Entrance Cable Specification:
Base Neutral Messenger Size AWG: |
1 |
Size AWG: |
8-8-8-8 |
Diameter Complete Cable (O.D.) (Inches): |
0.612 |
Weight Per 1000ft Total (Lbs.): |
136 |
Allowable Ampacity 60C (Amps): |
30 |
Allowable Ampacity 75C (Amps): |
40 |
Allowable Ampacity 90C (Amps): |
45 |

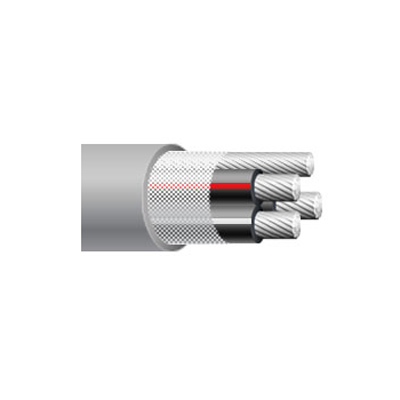

8-8-8-8 Aluminum SER Service Entrance Cable Construction:
Conductor - Compact stranded AA-8000 series aluminum alloy (ACM) per ASTM B801 or B836. Features solid AA-8000 series aluminum alloy (ACM) per ASTM B800.
Insulation - Color coded cross-linked polyethylene (XLPE).
Assembly - Insulated conductors are cabled with the bare ground wire. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration.
Jacket - Sunlight resistant, LEAD FREE, flame retardant, gray polyvinyl chloride (PVC) material.
8-8-8-8 Aluminum SER Service Entrance Cable why choose HuaDong?
Huadong Cable Group as a special 8-8-8-8 Aluminum SER Service Entrance Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in Service Entrance Cable, but also we have 15 senior engineers, they can free design the Service Entrance Cable size according to client’s requirement.
Our 8-8-8-8 Aluminum SER Service Entrance Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
