600V 2PNCT-B 3PNCT-B Cable Rubber Cable For Festoon

600V 2PNCT-B 3PNCT-B Cable Description:

What is 600V 2PNCT-B 3PNCT-B Cable? Do you know 2PNCT-B /  3PNCT-B meaning? Huadong Cable Group tell you all you wanna to know: 600V means Rated Voltage is 600V. B means Glass tape and stainless braid. PNCT is Cable Type: (Insulation: EP rubber) (Sheath: Chloroprene).

①Rated Voltage	②Class	③Cable Type	④Option (shield, etc.)
600V 3300V 6600V －	2 (class 2) 3 (class 3) 4 (class 4) －	PNCT (Insulation: EP rubber) (Sheath: Chloroprene) VCT (Insulation: PVC) (Sheath: PVC) FFCT (Insulation: Fluonlex) (Sheath: Fluonlex)	SB (Overall shield) PSB (Pair shield) CSB (Individual core shield) SX (Special shield) B (Glass tape and stainless braid) RF (Reinforced sheath)

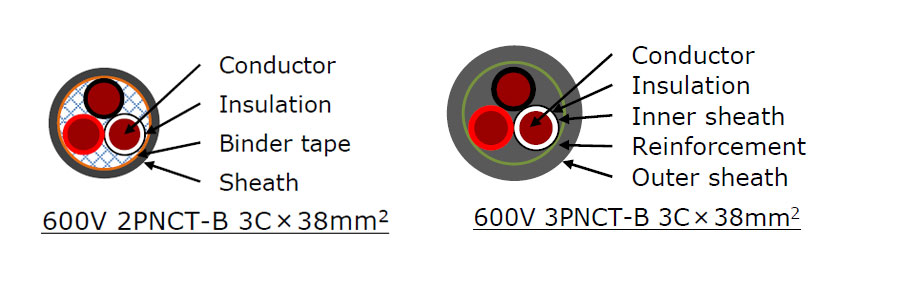

600V 2PNCT-B 3PNCT-B Cable Construction

Conductor: Tinned annealed copper
Insulation : EPR compound
Cores identification:    Colored insulation or tape
-1 core : black
-2 cores : black, white
-3 cores : black, white, red
-4 cores : black, white, red, green
-more than 5 cores : tracer identification by black, white, red
Outer sheath    Black polychloroprene rubber compound

600V 2PNCT-B 3PNCT-B Cable Parameters

Electrical Rated voltage 600V
AC test voltage 3000V/1min.
Maximum conductor resistance see table 1
Thermal Operating temperature -15°C~+80°C
Mechanical Minimum bending radius 7.5 x D
D : cable diameter
Maximum lateral pressure 4900N/m

600V 2PNCT-B Cable Spec:

No. of cores and nominal section	Nominal diameter of conductor	Overall diameter		Approx. net weight (kg/km)	Max. conductor resistance	Max. permissible tensile force
(n x mm2)	(mm)	Std. (mm)	Max. (mm)		(Ω/km)	(N)
1x38	9.1	15.4	16.4	525	0.525	1,110
1x60	11.6	18.9	19.9	795	0.329	1,760
1x100	15.2	23.7	24.9	1,310	0.193	2,940
1x150	18.7	27.5	28.9	1,790	0.136	4,410
1x200	21.2	31.4	33	2,410	0.0993	5,880
2x2	1.8	10.2	11.2	150	10.2	110
2x3.5	2.5	11.5	12.5	205	5.54	200
3x2	1.8	10.7	11.7	175	10.2	170
3x3.5	2.5	12.3	13.3	250	5.54	300
3x5.5	3.1	14.6	15.6	365	3.56	480
3x8	3.7	16.1	17.1	465	2.52	700
3x14	4.9	19.4	20.4	665	1.43	1,230
3x22	7	25.6	26.9	1,100	0.919	1,940
3x38	9.1	30.7	32.2	1,700	0.541	3,350
4x2	1.8	11.6	12.6	210	10.2	230
4x3.5	2.5	13.6	14.6	315	5.54	410
4x5.5	3.1	16.1	17.1	455	3.56	640
6x2	1.8	14	15	310	10.2	350
6x3.5	2.5	16.2	17.2	450	5.54	610
6x5.5	3.1	19.5	20.5	670	3.56	970
6x8	3.7	21.5	22.6	865	2.52	1,410
6x14	4.9	26	27.3	1,220	1.43	2,460
8x2	1.8	16.4	17.4	415	10.2	470
8x3.5	2.5	19.1	20.1	620	5.54	820
12x2	1.8	19.2	20.2	510	10.2	700
12x3.5	2.5	22.3	23.4	765	5.54	1,230
16x2	1.8	21.4	22.5	640	10.2	940
16x3.5	2.5	24.7	25.9	965	5.54	1,640
20x2	1.8	23.8	25	800	10.2	1,170
20x3.5	2.5	27.8	29	1,210	5.54	2,050
24x2	1.8	26.2	27.5	955	10.2	1,410
24x3.5	2.5	30.7	32.2	1,460	5.54	2,460
30x2	1.8	28	29.4	1,130	10.2	1,760
30x3.5	2.5	32.7	34.3	1,740	5.54	3,080

600V 3PNCT-B Cable Spec:

No. of cores and nominal section	Nominal diameter of conductor	Overall diameter		Approx. net weight	Max. conductor resistance	Max. permissible tensile force
(n x mm2)	(mm)	Std. (mm)	Max. (mm)	(kg/km)	(?/km)	(N)
1x38	9.1	18.9	19.9	635	0.525	1,110
1x60	11.6	22.8	23.9	945	0.329	1,760
1x100	15.2	26.8	28.1	1,440	0.193	2,940
1x150	18.7	32.8	36.2	2,060	0.136	4,410
1x200	21.2	36.9	38.7	2,730	0.0993	5,880
2x2	1.8	14.6	15.6	255	10.2	110
2x3.5	2.5	15.9	16.9	320	5.54	200
3x2	1.8	15.3	16.3	285	10.2	170
3x3.5	2.5	16.8	17.8	375	5.54	300
3x5.5	3.1	18.3	19.3	470	3.56	480
3x8	3.7	19.7	20.7	580	2.52	700
3x14	4.9	23.5	247	860	1.43	1,230
3x22	7	30.8	32.3	1,440	0.919	1,940
3x38	9.1	36	37.8	1,700	0.541	3,350
4x2	1.8	16.6	17.6	345	10.2	230
4x3.5	2.5	18.3	19.3	455	5.54	410
4x5.5	3.1	19.9	20.9	580	3.56	640
