600V 2PNCT-T 3PNCT-T Cable

600V 2PNCT-T 3PNCT-T Cable Description:

What is 600V 2PNCT-T 3PNCT-T Cable? Do you know 2PNCT-T /  3PNCT-T cable meaning? Huadong Cable Group tell you all you wanna to know: 600V means Rated Voltage is 600V. T means the main application is Vibration resistant. PNCT is Cable Type: (Insulation: EP rubber) (Sheath: Chloroprene).

①Rated Voltage	②Main Application	③Class	④Cable Type
600V 3300V 6600V －	CUR (Festoon system) SK (Festoon system, flat cables) CAR (Carrier drum system) RE (Reel system) RE(V) (Vertical reel system) H (Reel system, flat cable) TOR (Torsion system) T (Vibration resistant) SPD (Spreader) F (Composite cable) FG (Optical composite cable) K (Instrumentation cable with low voltage circuit (60V or less))	2 (class 2) 3 (class 3) 4 (class 4) －	PNCT (Insulation: EP rubber) (Sheath: Chloroprene) VCT (Insulation: PVC) (Sheath: PVC) FFCT (Insulation: Fluonlex) (Sheath: Fluonlex)

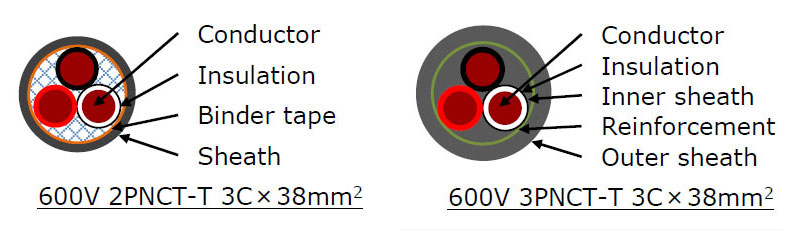

2PNCT-T Cable Construction

Conductor：Tinned annealed copper
Insulation：EPR compound

2PNCT-T Cable Cores identification

1 core: black
2 cores: black, white
3 cores: black, white, red
4 cores: black, white, red, green
more than 5 cores : tracer identification by black, white, red
Outer sheath    Black polychloroprene rubber compound

2PNCT-T Cable Parameters

Electrical Rated voltage：600V
AC test voltage： 3000V/1min.
Operating temperature：-15°C~+80°C
Minimum bending radius：7.5 x D   D : cable diameter
Maximum lateral pressure：4900N/m

600V 2PNCT-T Specifications

No. of cores and nominal section	Nominal diameter of conductor	Overall diameter		Approx. net weight (kg/km)	Max. conductor resistance	Max. permissible tensile force
(n x mm2)	(mm)	Std. (mm)	Max. (mm)		(?/km)	(N)
1x38	9.1	15.4	16.4	525	0.525	1,110
1x60	11.6	18.9	19.9	795	0.329	1,760
1x100	15.2	23.7	24.9	1,310	0.193	2,940
1x150	18.7	27.5	28.9	1,790	0.136	4,410
1x200	21.2	31.4	33	2,410	0.0993	5,880
2x2	1.8	10.2	11.2	150	10.2	110
2x3.5	2.5	11.5	12.5	205	5.54	200
3x2	1.8	10.7	11.7	175	10.2	170
3x3.5	2.5	12.3	13.3	250	5.54	300
3x5.5	3.1	14.6	15.6	365	3.56	480
3x8	3.7	16.1	17.1	465	2.52	700
3x14	4.9	19.4	20.4	665	1.43	1,230
3x22	7	25.6	26.9	1,100	0.919	1,940
3x38	9.1	30.7	32.2	1,700	0.541	3,350
4x2	1.8	11.6	12.6	210	10.2	230
4x3.5	2.5	13.6	14.6	315	5.54	410
4x5.5	3.1	16.1	17.1	455	3.56	640
6x2	1.8	14	15	310	10.2	350
6x3.5	2.5	16.2	17.2	450	5.54	610
6x5.5	3.1	19.5	20.5	670	3.56	970
6x8	3.7	21.5	22.6	865	2.52	1,410
6x14	4.9	26	27.3	1,220	1.43	2,460
8x2	1.8	16.4	17.4	415	10.2	470
8x3.5	2.5	19.1	20.1	620	5.54	820
12x2	1.8	19.2	20.2	510	10.2	700
12x3.5	2.5	22.3	23.4	765	5.54	1,230
16x2	1.8	21.4	22.5	640	10.2	940
16x3.5	2.5	24.7	25.9	965	5.54	1,640
20x2	1.8	23.8	25	800	10.2	1,170
20x3.5	2.5	27.8	29	1,210	5.54	2,050
24x2	1.8	26.2	27.5	955	10.2	1,410
24x3.5	2.5	30.7	32.2	1,460	5.54	2,460
30x2	1.8	28	29.4	1,130	10.2	1,760
30x3.5	2.5	32.7	34.3	1,740	5.54	3,080

600V 3PNCT-T Specifications

No. of cores and nominal section	Nominal diameter of conductor	Overall diameter		Approx. net weight (kg/km)	Max. conductor resistance	Max. permissible tensile force
(n x mm2)	(mm)	Std. (mm)	Max. (mm)		(Ω/km)	(N)
1x38	9.1	18.9	19.9	635	0.525	1,110
1x60	11.6	22.8	23.9	945	0.329	1,760
1x100	15.2	26.8	28.1	1,440	0.193	2,940
1x150	18.7	32.8	36.2	2,060	0.136	4,410
1x200	21.2	36.9	38.7	2,730	0.0993	5,880
2x2	1.8	14.6	15.6	255	10.2	110
2x3.5	2.5	15.9	16.9	320	5.54	200
3x2	1.8	15.3	16.3	285	10.2	170
3x3.5	2.5	16.8	17.8	375	5.54	300
3x5.5	3.1	18.3	19.3	470	3.56	480
3x8	3.7	19.7	20.7	580	2.52	700
3x14	4.9	23.5	247	860	1.43	1,230
3x22	7	30.8	32.3	1,440	0.919	1,940
3x38	9.1	36	37.8	1,700	0.541	3,350
4x2	1.8	16.6	17.6	345	10.2	230
4x3.5	2.5	18.3	19.3	455	5.54	410
4x5.5	3.1	19.9	20.9	580	3.56	640

600V 2PNCT-T 3PNCT-T Cable Why Choose Huadong

As a professional 600V 2PNCT-T 3PNCT-T Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 600V 2PNCT-T 3PNCT-T Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
