600V SK-2PNCT Cable

600V SK-2PNCT Cable Description:

What is 600V SK-2PNCT Cable? Do you know 600V SK-2PNCT Cable meaning? Huadong Cable Group tell you all you wanna to know: 600V means Rated Voltage is 600V. SK means the main application is Festoon system, flat cables. PNCT is Cable Type: (Insulation: EP rubber) (Sheath: Chloroprene)

①Rated Voltage	②Main Application	③Class	④Cable Type
600V 3300V 6600V －	CUR (Festoon system) SK (Festoon system, flat cables) CAR (Carrier drum system) RE (Reel system) RE(V) (Vertical reel system) H (Reel system, flat cable) TOR (Torsion system) T (Vibration resistant) SPD (Spreader) F (Composite cable) FG (Optical composite cable) K (Instrumentation cable with low voltage circuit (60V or less))	2 (class 2) 3 (class 3) 4 (class 4) －	PNCT (Insulation: EP rubber) (Sheath: Chloroprene) VCT (Insulation: PVC) (Sheath: PVC) FFCT (Insulation: Fluonlex) (Sheath: Fluonlex)

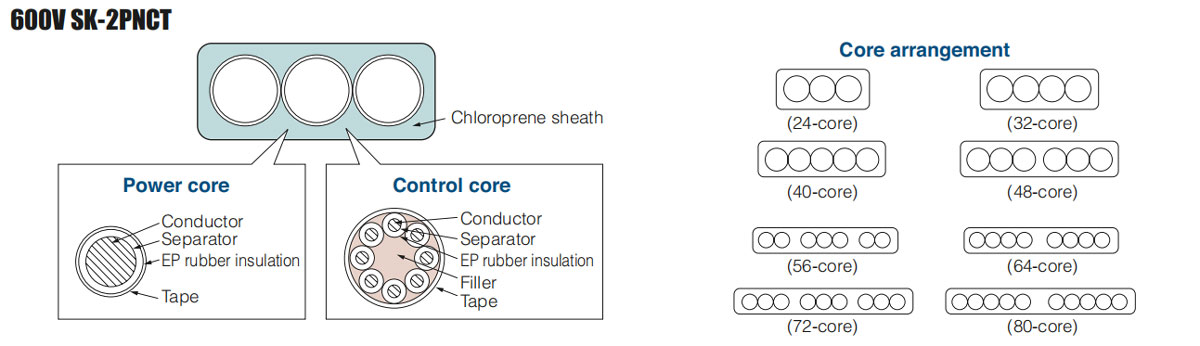

600V SK-2PNCT Cable Constructure:

Conductor: Copper /Tinned annealed copper
Insulation: EPR compound
Outer sheath: Chloroprene rubber
Rated Voltage: AC 600V
Rated Temperature: 80 degrees C
Test Voltage: 3000V /1 minute
Feature: High flexibility
Storage space can be saved since the permissible bending radius is smaller than that of round cables if they have the same number of cores. Low possibility of side movement and twisting during crane operation because of the flat configuration.
Application: Festoon System and Lift System

600V SK-2PNCT Cable Spec:

No. of Cores	Conductor			Insulation Thickness (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
3	22	7/20/0.45	7	1.2	2.6	15.5X35	1160
	38	7/34/0.45	9.1	1.2	2.9	18.0X42	1750
	60	19/20/0.45	11.6	1.5	3.3	22  X52	2700
	100	19/34/0.45	15.2	2	3.9	28  X66	4460
24	1.25	50/0.18	1.5	0.8	2.9	18.0X42	1230
32	1.25	50/0.18	1.5	0.8	3.3	19.0X55	1540
40	1.25	50/0.18	1.5	0.8	3.7	19.5X68	1980
48	1.25	50/0.18	1.5	0.8	2.9	18.0X84	2260
56	1.25	50/0.18	1.5	0.8	2.9	18.0X102	2730
64	1.25	50/0.18	1.5	0.8	3.3	19.0X109	3080
72	1.25	50/0.18	1.5	0.8	2.9	18.0X126	3390
80	1.25	50/0.18	1.5	0.8	3.7	19.5X135	3950

600V SK-2PNCT Cable Why Choose Huadong

As a professional 600V SK-2PNCT Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 600V SK-2PNCT Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
