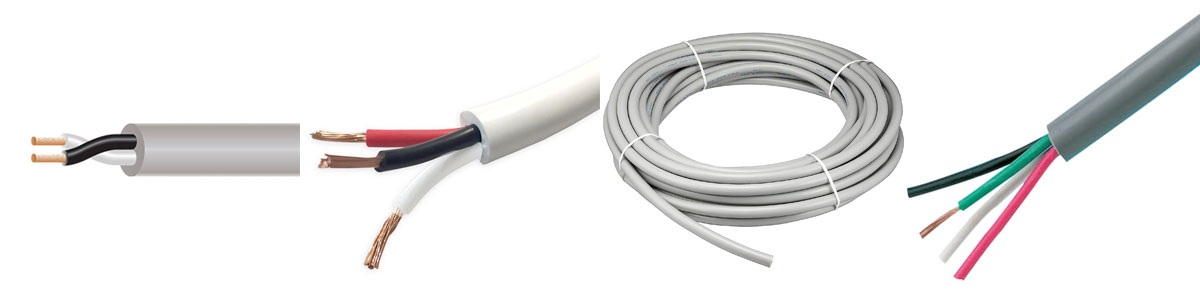

600V VCT Cable

What is VCT Cable?

Do you know what is VCT Cable? Do you know VCT Cable meaning? VCT Cable is for mobile-electrical equipment used in mines, factories, farm or household appliances, VCT Cable meaning this cable type is PVC Insulation and PVC Sheath. VCT Cable is suitable for use in places where cables come in contact with oils.

VCT Cable Constructure:

Conductor: Copper /Tinned annealed copper
Insulation:PVC
Outer sheath:PVC
Rated Voltage: AC 600V
Rated Temperature : 60 degrees C
Test Voltage: 3000V /1 minute
Feature :  Light and easy-handling
Application : Lead wires for various mobile electrical equipments

VCT Cable Core Identification:

Single-core: Black
2 Cores: Blue and Brown
3 Cores: Brown, Black and Grey
4 Cores: Blue, Brown, Black and Grey

VCT Cable Specification:

No. of Cores	Conductor			Insulation Thickness (mm)	Sheath Thickness (mm)	Approx.Overall Diameter (mm)	Approx. Mass (kg/km)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
2	0.75	30/0.18	1.1	0.8	1.7	8.8	95
	1.25	50/0.18	1.5	0.8	1.7	9.6	120
	2	37/0.26	1.8	0.8	1.8	10.5	145
	3.5	45/0.32	2.5	0.8	1.8	12	205
	5.5	70/0.32	3.1	1	2	14.5	300
	8	50/0.45	3.7	1.2	2.1	16.5	405
	14	88/0.45	4.9	1.4	2.3	20	630
3	0.75	30/0.18	1.1	0.8	1.7	9.3	110
	1.25	50/0.18	1.5	0.8	1.7	10.5	135
	2	37/0.26	1.8	0.8	1.8	11	170
	3.5	45/0.32	2.5	0.8	1.9	13	250
	5.5	70/0.32	3.1	1	2	15	365
	8	50/0.45	3.7	1.2	2.2	18	505
	14	88/0.45	4.9	1.4	2.4	22	790
4	0.75	30/0.18	1.1	0.8	1.7	9.9	130
	1.25	50/0.18	1.5	0.8	1.8	11.5	170
	2	37/0.26	1.8	0.8	1.8	12	210
	3.5	45/0.32	2.5	0.8	2	14	315
	5.5	70/0.32	3.1	1	2.1	16.5	455
	8	50/0.45	3.7	1.2	2.3	19.5	630
	14	88/0.45	4.9	1.4	2.5	24	995
