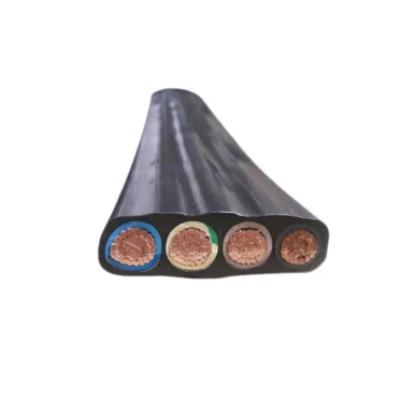

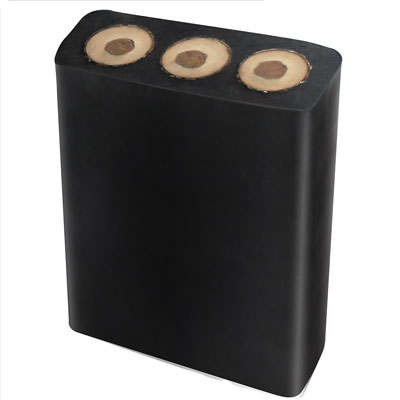

600V 3300V 6600V H-2PNCT H-3PNCT Cable

600V 3300V 6600V H-2PNCT H-3PNCT Cable Description:

What is 600V H-2PNCT H-3PNCT Cable? Do you know H-2PNCT / H-3PNCT meaning? Huadong Cable Group tell you all you wanna to know: 600V means Rated Voltage is 600V. H means the main application is Reel system, flat cable. PNCT is Cable Type: (Insulation: EP rubber) (Sheath: Chloroprene).

①Rated Voltage	②Main Application	③Class	④Cable Type
600V 3300V 6600V －	CUR (Festoon system) SK (Festoon system, flat cables) CAR (Carrier drum system) RE (Reel system) RE(V) (Vertical reel system) H (Reel system, flat cable) TOR (Torsion system) T (Vibration resistant) SPD (Spreader) F (Composite cable) FG (Optical composite cable) K (Instrumentation cable with low voltage circuit (60V or less))	2 (class 2) 3 (class 3) 4 (class 4) －	PNCT (Insulation: EP rubber) (Sheath: Chloroprene) VCT (Insulation: PVC) (Sheath: PVC) FFCT (Insulation: Fluonlex) (Sheath: Fluonlex)

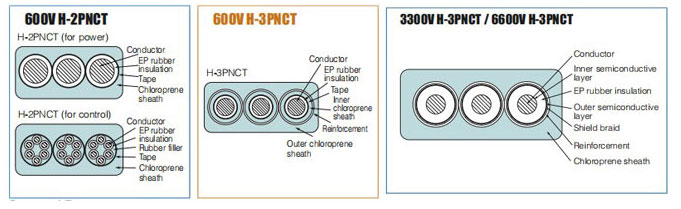

600V H-2PNCT H-3PNCT Cable Constructure:

Conductor: Copper /Tinned annealed copper
Insulation: EPR compound
Outer sheath: Chloroprene rubber
Rated Voltage: AC 600V
Rated Temperature: 80 degrees C
Test Voltage: 3000V /1 minute
                     3300V rated: 9000V / 10 minutes
                     6600V rated: 17000V / 10 minutes
Feature: High resistance to lateral pressure and bending
Application:  Vertical reel system used in landfills, etc.

600V H-2PNCT Cable Spec:

No. of Cores	Conductor			Insulation Thickness (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)	Max. Conductor Resistance	Min. Insulation Resistance (20 degrees C) (MΩ/km)	Min. Permissible Bending Radius (mm)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
3	22	7/20/0.45TA	7	1.2	2.6	15.0X34	1140	0.892	300	180
	30	7/27/0.45TA	8.1	1.2	2.7	16.0X38	1420	0.661	300	200
	38	7/34/0.45TA	9.1	1.2	2.8	17.5X41	1710	0.525	200	210
	50	19/16/0.45TA	10.4	1.5	3.1	20 X47	2220	0.411	200	240
	60	19/20/0.45TA	11.6	1.5	3.2	21  X51	2640	0.329	200	260
	80	19/27/0.45TA	13.5	2	3.6	25  X60	3630	0.243	300	300
	100	19/34/0.45TA	15.2	2	3.8	27  X65	4400	0.193	200	330
	125	19/42/0.45TA	16.9	2	4	29 X70	5260	0.156	200	350
	150	27/34/0.45TA	18.7	2	4.2	31 X74	5960	0.136	200	380
	200	37/34/0.45TA	21.2	2.5	4.7	36 X87	8190	0.0993	200	440
	250	37/42/0.45TA	23.6	2.5	5.1	39 X96	9950	0.0803	200	470
9	3.5	3/0.32TST+45/0.32TA	2.6	0.8	2.7	16.5X38	1060	5.54	400	200
12	3.5	3/0.32TST+45/0.32TA	2.6	0.8	2.9	17.5X41	1300	5.54	400	210
15	3.5	3/0.32TST+45/0.32TA	2.6	0.8	3	19.0X45	1570	5.54	400	230
18	3.5	3/0.32TST+45/0.32TA	2.6	0.8	3.2	21 X49	1880	5.54	400	260
21	3.5	3/0.32TST+45/0.32TA	2.6	0.8	3.4	23 X53	2190	5.54	400	270
24	3.5	3/0.32TST+45/0.32TA	2.6	0.8	3.5	24 X57	2510	5.54	400	290
30	3.5	3/0.32TST+45/0.32TA	2.6	0.8	3.9	28 X66	3310	5.54	400	340

600V H-3PNCT Cable Spec:

No. of Cores	Conductor			Insulation Thickness (mm)	Thickness of Reinforecement (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)	Max. Conductor Resistance	Min. Insulation Resistance (20 degrees C) (MΩ?km)	Min. Permissible Bending Radius (mm)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
3	22	7/20/0.45	7	1.6	1	3.6	20X49	1640	0.892	300	240
	30	7/27/0.45	8.1	1.6	1	3.7	21X52	1960	0.661	300	260
	38	7/34/0.45	9.1	1.6	1	3.8	22X55	2290	0.525	300	270
	50	19/16/0.45	10.4	2.1	1	4.2	26X63	2970	0.411	300	320
	60	19/20/0.45	11.6	2.1	1	4.3	27X66	3440	0.329	300	330
	80	19/27/0.45	13.5	2.1	1	4.5	29X72	4290	0.243	300	350
	100	19/34/0.45	15.2	2.1	1	4.7	31X77	5100	0.193	200	380
	125	19/42/0.45	16.9	2.7	1	5.1	35X86	6360	0.156	200	420
	150	27/34/0.45	18.7	2.7	1	5.3	36X90	7110	0.136	200	440
	200	37/34/0.45	21.2	3.3	1	5.8	41X104	9590	0.0993	200	500
	250	37/42/0.45	23.6	3.3	1	6.2	45X113	11500	0.0803	200	540

3300V H-3PNCT Cable Spec:

No. of Cores	Conductor			Insulation Thickness (mm)	Thickness of Shield Braid (mm)	Thickness of Reinforcement (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)	Max. Conductor Resistance	Min. Insulation Resistance (20 degrees C) (MΩ?km)	Min. Permissible Bending Radius (mm)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
3	22	7/20/0.45	7	3	0.3	1	4.8	26X58	2340	0.892	500	420
	38	7/34/0.45	9.1	3	0.45	1	5.1	29X65	3190	0.525	500	470
	60	19/20/0.45	11.6	3.5	0.45	1	5.6	33X76	4500	0.329	400	530
	100	19/34/0.45	15.2	3.5	0.45	1	6	37X87	6320	0.193	400	600
4	22	7/20/0.45	7	3	0.3	1	5.3	27X75	3150	0.892	500	440
	38	7/34/0.45	9.1	3	0.45	1	5.7	30X85	4300	0.525	500	480
	60	19/20/0.45	11.6	3.5	0.45	1	6.3	35X99	6080	0.329	400	560
	100	19/34/0.45	15.2	3.5	0.45	1	6.9	39X114	8600	0.193	400	630

6600V H-3PNCT Cable Spec:

No. of Cores	Conductor			Insulation Thickness (mm)	Thickness of Shield Braid (mm)	Thickness of Reinforcement (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)	Max. Conductor Resistance	Min. Insulation Resistance (20 degrees C) (MΩ?km)	Min. Permissible Bending Radius (mm)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
3	22	7/20/0.45	7	5	0.45	1	5.4	31X72	3350	0.892	500	500
	38	7/34/0.45	9.1	5	0.45	1	5.7	34X78	4200	0.525	500	550
	60	19/20/0.45	11.6	5	0.45	1	6	37X86	5330	0.329	500	600
	100	19/34/0.45	15.2	5	0.45	1	6.4	41X97	7260	0.193	500	660
4	22	7/20/0.45	7	5	0.45	1	6.1	33X93	4540	0.892	500	530
	38	7/34/0.45	9.1	5	0.45	1	6.4	35X102	5680	0.525	500	560
	60	19/20/0.45	11.6	5	0.45	1	6.8	39X112	7240	0.329	500	630
	100	19/34/0.45	15.2	5	0.45	1	7.4	43X127	9910	0.193	500	690

600V 3300V 6600V H-2PNCT H-3PNCT Cable Why Choose Huadong

As a professional 600V 3300V 6600V H-2PNCT H-3PNCT Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 600V 3300V 6600V H-2PNCT H-3PNCT Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
