CUR-2PNCT-PSB

CUR-2PNCT-PSB Cable Description:

What is 600V CUR-2PNCT-PSB Cable? Do you know 600V CUR-2PNCT-PSB Cable meaning? Huadong Cable Group tell you all you wanna to know.

①Rated Voltage	②Main Application	③Class	④Cable Type	⑤Option (shield, etc.)
600V 3300V 6600V －	CUR (Festoon system) SK (Festoon system, flat cables) CAR (Carrier drum system) RE (Reel system) RE(V) (Vertical reel system) H (Reel system, flat cable) TOR (Torsion system) T (Vibration resistant) SPD (Spreader) F (Composite cable) FG (Optical composite cable) K (Instrumentation cable with low voltage circuit (60V or less))	2 (class 2) 3 (class 3) 4 (class 4) －	PNCT (Insulation: EP rubber) (Sheath: Chloroprene) VCT (Insulation: PVC) (Sheath: PVC) FFCT (Insulation: Fluonlex) (Sheath: Fluonlex)	SB (Overall shield) PSB (Pair shield) CSB (Individual core shield) SX (Special shield) B (Glass tape and stainless braid) RF (Reinforced sheath)

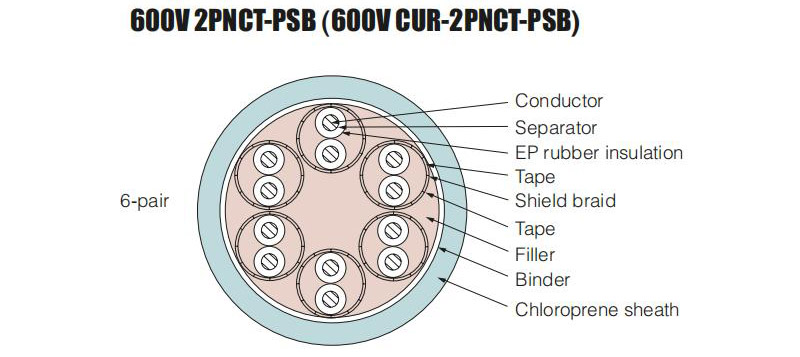

600V CUR-2PNCT-PSB Cable Constructure

Conductor: Copper /Tinned annealed copper
Insulation: EPR compound
Shield braid: Copper wire/Tinned Copper wire
Outer sheath: Chloroprene rubber
Rated Voltage: AC 600V
Rated Temperature: 80 degrees C
Test Voltage: 3000V /1 minute
Feature: High flexibility
Effective against static and electromagnetic induction can be expected because of pair shielded structure.
Application: Festoon System and Lift System

600V CUR-2PNCT-PSB Cable Spec

No. of Pairs (Cores)	Conductor			Insulation Thickness (mm)	Thickness of Shield Braid (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
2P (4)	1.25	50/0.18	1.5	0.8	0.3	2.3	20	380
	2	37/0.26	1.8	0.8	0.3	2.4	22	450
	3.5	45/0.32	2.5	0.8	0.3	2.6	25	615
3P (6)	1.25	50/0.18	1.5	0.8	0.3	2.4	22	465
	2	37/0.26	1.8	0.8	0.3	2.5	23	555
	3.5	45/0.32	2.5	0.8	0.3	2.7	27	765
4P (8)	1.25	50/0.18	1.5	0.8	0.3	2.5	24	575
	2	37/0.26	1.8	0.8	0.3	2.6	26	685
	3.5	45/0.32	2.5	0.8	0.3	2.8	29	950
5P (10)	1.25	50/0.18	1.5	0.8	0.3	2.7	26	705
	2	37/0.26	1.8	0.8	0.3	2.8	28	840
	3.5	45/0.32	2.5	0.8	0.3	3	32	1170
6P (12)	1.25	50/0.18	1.5	0.8	0.3	2.8	29	835
	2	37/0.26	1.8	0.8	0.3	2.9	31	1000
	3.5	45/0.32	2.5	0.8	0.3	3.2	36	1420
7P (14)	1.25	50/0.18	1.5	0.8	0.3	3	31	985
	2	37/0.26	1.8	0.8	0.3	3.1	34	1180
	3.5	45/0.32	2.5	0.8	0.3	3.4	39	1660
8P (16)	1.25	50/0.18	1.5	0.8	0.3	3.1	34	1140
	2	37/0.26	1.8	0.8	0.3	3.3	36	1370
	3.5	45/0.32	2.5	0.8	0.3	3.6	42	1920
9P (18)	1.25	50/0.18	1.5	0.8	0.3	3.3	37	1310
	2	37/0.26	1.8	0.8	0.3	3.4	39	1560
	3.5	45/0.32	2.5	0.8	0.3	3.8	45	2200
10P (20)	1.25	50/0.18	1.5	0.8	0.3	3.3	37	1400
	2	37/0.26	1.8	0.8	0.3	3.5	40	1670
	3.5	45/0.32	2.5	0.8	0.3	3.8	46	2380
12P (24)	1.25	50/0.18	1.5	0.8	0.3	3.4	38	1570
	2	37/0.26	1.8	0.8	0.3	3.5	41	1870
	3.5	45/0.32	2.5	0.8	0.3	3.9	48	2680

600V CUR-2PNCT-PSB Cable Why Choose Huadong

As a professional CUR-2PNCT-PSB manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our CUR-2PNCT-PSB export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
