600V CAR-2PNCT CAR-3PNCT Cable

600V CAR-2PNCT CAR-3PNCT Cable Description:

What is 600V CAR-2PNCT CAR-3PNCT Cable? Do you know CAR-2PNCT / CAR-3PNC meaning? Huadong Cable Group tell you all you wanna to know: 600V means Rated Voltage is 600V. CAR means the main application is Carrier drum system. PNCT is Cable Type: (Insulation: EP rubber) (Sheath: Chloroprene).

①Rated Voltage	②Main Application	③Class	④Cable Type
600V 3300V 6600V －	CUR (Festoon system) SK (Festoon system, flat cables) CAR (Carrier drum system) RE (Reel system) RE(V) (Vertical reel system) H (Reel system, flat cable) TOR (Torsion system) T (Vibration resistant) SPD (Spreader) F (Composite cable) FG (Optical composite cable) K (Instrumentation cable with low voltage circuit (60V or less))	2 (class 2) 3 (class 3) 4 (class 4) －	PNCT (Insulation: EP rubber) (Sheath: Chloroprene) VCT (Insulation: PVC) (Sheath: PVC) FFCT (Insulation: Fluonlex) (Sheath: Fluonlex)

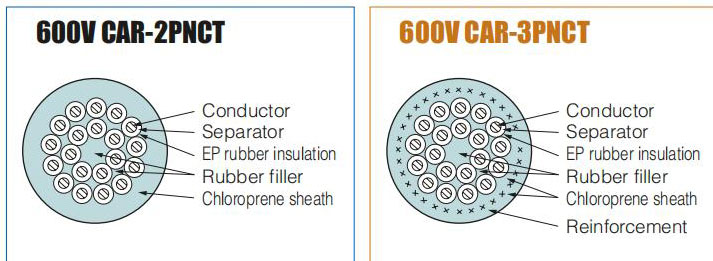

600V CAR-2PNCT CAR-3PNCT Constructure:

Conductor: Copper /Tinned annealed copper
Insulation: EPR compound
Rubber filler
Outer sheath: Chloroprene rubber
Rated Voltage: AC 600V
Rated Temperature: 80 degrees C
Test Voltage: 3000V /1 minute
Feature:  Lateral pressure resistance
Application: Traversing carrier roller system of overhead cranes and    Separator cable chain systems.

600V CAR-2PNCT Cable Spec:

No. of Cores	Conductor			Insulation Thickness (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
3	8	50/0.45	3.7	1	2.1	17	475
	14	88/0.45	4.9	1	2.3	20	730
	22	7/20/0.45	7	1.2	2.7	26	1180
	30	7/27/0.45	8.1	1.2	2.8	28	1470
	38	7/34/0.45	9.1	1.2	3	31	1790
	60	19/20/0.45	11.6	1.5	3.4	38	2790
4	38	7/34/0.45	9.1	1.2	3.2	34	2280
6	3.5	45/0.32	2.5	0.8	2.1	17	465
	8	50/0.45	3.7	1	2.4	22	890
	14	88/0.45	4.9	1	2.7	27	1390
	22	7/20/0.45	7	1.2	3.1	34	2220
10	3.5	45/0.32	2.5	0.8	2.5	23	790
12	3.5	45/0.32	2.5	0.8		24	815
16	3.5	45/0.32	2.5	0.8	2.7	26	1080
20	3.5	45/0.32	2.5	0.8	2.8	29	1330
24	3.5	45/0.32	2.5	0.8	3	32	1630
30	3.5	45/0.32	2.5	0.8	3.2	36	2080

600V CAR-2PNCT Cable Spec:

Conductor			Insulation Thickness (mm)	Thickness of Reinforcement (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)
Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
8	50/0.45	3.7	1.2	0.5	3.1	21	620
14	88/0.45	4.9	1.2	1	3.3	25	920
22	7/20/0.45	7	1.6	1	3.7	31	1470
30	7/27/0.45	8.1	1.6	1	3.9	34	1810
38	7/34/0.45	9.1	1.6	1	4	36	2150
60	19/20/0.45	11.6	2.1	1	4.5	45	3330
38	7/34/0.45	9.1	1.6	1	4.2	40	2680
3.5	45/0.32	2.5	1.2	0.5	3.2	23	690
8	50/0.45	3.7	1.2	0.5	3.4	27	1100
3.5	45/0.32	2.5	1.2	1	3.6	30	1210
3.5	45/0.32	2.5	1.2	1	3.6	31	1220
3.5	45/0.32	2.5	1.2	1	3.8	34	1560
3.5	45/0.32	2.5	1.2	1	4	37	1940
3.5	45/0.32	2.5	1.2	1	4.2	41	2340
3.5	45/0.32	2.5	1.2	1	4.5	46	3000

600V CAR-2PNCT CAR-3PNCT Cable Why Choose Huadong

As a professional 600V CAR-2PNCT CAR-3PNCT Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 600V CAR-2PNCT CAR-3PNCT Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
