600V CUR-2PNCT-SB Festoon System Flexible Cable

CUR-2PNCT-SB Cable Description:

①Rated Voltage	②Main Application	③Class	④Cable Type	⑤Option (shield, etc.)
600V 3300V 6600V －	CUR (Festoon system) SK (Festoon system, flat cables) CAR (Carrier drum system) RE (Reel system) RE(V) (Vertical reel system) H (Reel system, flat cable) TOR (Torsion system) T (Vibration resistant) SPD (Spreader) F (Composite cable) FG (Optical composite cable) K (Instrumentation cable with low voltage circuit (60V or less))	2 (class 2) 3 (class 3) 4 (class 4) －	PNCT (Insulation: EP rubber) (Sheath: Chloroprene) VCT (Insulation: PVC) (Sheath: PVC) FFCT (Insulation: Fluonlex) (Sheath: Fluonlex)	SB (Overall shield) PSB (Pair shield) CSB (Individual core shield) SX (Special shield) B (Glass tape and stainless braid) RF (Reinforced sheath)

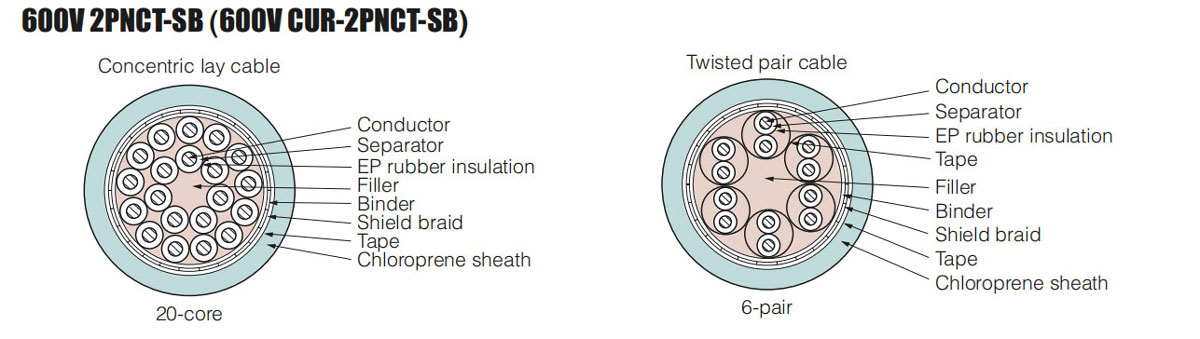

CUR-2PNCT-SB Cable Constructure:

Conductor: Copper /Tinned annealed copper
Insulation: EPR compound
Filler
Binder
Shield braid:Copper wire/Tinned Copper wire
Outer sheath:Chloroprene rubber
Rated Voltage    : AC 600V
Rated Temperature : 80 degrees C
Test Voltage: 3000V /1 minute
Feature : High flexibility
Application : Festoon System and Lift System

CUR-2PNCT-SB Cable Specification:

No. of Cores	Conductor			Insulation Thickness (mm)	Thickness of Shield Braid (mm)	Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Mass (kg/km)
	Size (mm2)	Construction (No./mm)	Outer Diameter (mm)
2	0.75	30/0.18	1.1	0.8	0.3	1.8	11	130
	1.25	50/0.18	1.5	0.8	0.3	1.8	12	155
	2	37/0.26	1.8	0.8	0.3	1.9	13	185
	3.5	45/0.32	2.5	0.8	0.3	2	14.5	245
3	0.75	30/0.18	1.1	0.8	0.3	1.8	11.5	150
	1.25	50/0.18	1.5	0.8	0.3	1.9	12.5	185
	2	37/0.26	1.8	0.8	0.3	1.9	13.5	215
	3.5	45/0.32	2.5	0.8	0.3	2	15	295
4	0.75	30/0.18	1.1	0.8	0.3	1.9	12.5	175
	1.25	50/0.18	1.5	0.8	0.3	1.9	13.5	215
	2	37/0.26	1.8	0.8	0.3	2	14.5	260
	3.5	45/0.32	2.5	0.8	0.3	2.1	16.5	360
5	0.75	30/0.18	1.1	0.8	0.3	1.9	13.5	200
	1.25	50/0.18	1.5	0.8	0.3	2	14.5	255
	2	37/0.26	1.8	0.8	0.3	2	15.5	300
	3.5	45/0.32	2.5	0.8	0.3	2.2	17.5	435
6	0.75	30/0.18	1.1	0.8	0.3	2	14.5	235
	1.25	50/0.18	1.5	0.8	0.3	2.1	15.5	295
	2	37/0.26	1.8	0.8	0.3	2.1	16.5	355
	3.5	45/0.32	2.5	0.8	0.3	2.3	19	510
10	0.75	30/0.18	1.1	0.8	0.3	2.2	17.5	355
	1.25	50/0.18	1.5	0.8	0.3	2.3	19	450
	2	37/0.26	1.8	0.8	0.3	2.3	21	550
	3.5	45/0.32	2.5	0.8	0.45	2.5	24	835
12	0.75	30/0.18	1.1	0.8	0.3	2.2	18	385
	1.25	50/0.18	1.5	0.8	0.3	2.3	19.5	495
	2	37/0.26	1.8	0.8	0.3	2.4	21	620
	3.5	45/0.32	2.5	0.8	0.45	2.6	25	945
16	0.75	30/0.18	1.1	0.8	0.3	2.3	19.5	475
	1.25	50/0.18	1.5	0.8	0.45	2.4	22	640
	2	37/0.26	1.8	0.8	0.45	2.5	24	800
	3.5	45/0.32	2.5	0.8	0.45	2.7	27	1190
20	0.75	30/0.18	1.1	0.8	0.45	2.4	22	595
	1.25	50/0.18	1.5	0.8	0.45	2.5	24	770
	2	37/0.26	1.8	0.8	0.45	2.7	26	975
	3.5	45/0.32	2.5	0.8	0.45	2.9	30	1450
24	0.75	30/0.18	1.1	0.8	0.45	2.5	24	695
	1.25	50/0.18	1.5	0.8	0.45	2.7	27	920
	2	37/0.26	1.8	0.8	0.45	2.8	28	1150
	3.5	45/0.32	2.5	0.8	0.45	3.1	33	1740
30	0.75	30/0.18	1.1	0.8	0.45	2.6	25	815
	1.25	50/0.18	1.5	0.8	0.45	2.8	28	1080
	2	37/0.26	1.8	0.8	0.45	2.9	30	1360
	3.5	45/0.32	2.5	0.8	0.45	3.2	35	2070
2P (4)	1.25	50/0.18	1.5	0.8	0.3	2.3	19.5	370
	2	37/0.26	1.8	0.8	0.3	2.4	21	440
	3.5	45/0.32	2.5	0.8	0.45	2.6	25	625
3P (6)	1.25	50/0.18	1.5	0.8	0.3	2.4	21	435
	2	37/0.26	1.8	0.8	0.45	2.5	23	550
	3.5	45/0.32	2.5	0.8	0.45	2.7	26	760
4P (8)	1.25	50/0.18	1.5	0.8	0.45	2.5	23	545
	2	37/0.26	1.8	0.8	0.45	2.6	25	660
	3.5	45/0.32	2.5	0.8	0.45	2.8	29	920
5P (10)	1.25	50/0.18	1.5	0.8	0.45	2.6	25	650
	2	37/0.26	1.8	0.8	0.45	2.7	27	790
	3.5	45/0.32	2.5	0.8	0.45	3	32	1120
6P (12)	1.25	50/0.18	1.5	0.8	0.45	2.7	27	760
	2	37/0.26	1.8	0.8	0.45	2.9	30	940
	3.5	45/0.32	2.5	0.8	0.45	3.1	34	1320
7P (14)	1.25	50/0.18	1.5	0.8	0.45	2.9	30	890
	2	37/0.26	1.8	0.8	0.45	3	32	1080
	3.5	45/0.32	2.5	0.8	0.45	3.3	37	1540
8P (16)	1.25	50/0.18	1.5	0.8	0.45	3	32	1010
	2	37/0.26	1.8	0.8	0.45	3.2	35	1250
	3.5	45/0.32	2.5	0.8	0.65	3.5	41	1800
