FG16OH2M16 0.6/1 kV

What is FG16OH2M16 Cable?

FG16OH2M16–0.6/1 kV cable is multicore core power cable, G16 rubber insulated, tape screen, LS0H thermoplastic sheathed. Resistant to fire propagation with a low emission of smoke and toxic and corrosive gases when exposed to fire.

FG16OH2M16 Cable Application:

FG16OH2M16 Cable for indoor and outdoor installation, also in wet locations; for fixed  installation in surface mounted or on metallic structures; direct laying in earth permitted.

FG16OH2M16 Cable is used for energy transmission and useful for signal and command transmission as well. It provides protection against electromagnetic interferences. Can be used in elevated fire risk environments such public places, hotel, hospitals, etc. Internal or outdoor fixed laying, even in wet environment. Buried fixing is allowed.

FG16OH2M16 Cable Cores Colour

2: Blue, Brown;
3: Green/Yellow, Blue, Brown; Brown, Black, Grey;
4: Green/Yellow, Brown, Black, Grey; Blue, Brown, Black, Grey;
5: Green/Yellow, Blue, Brown, Black, Grey; Blue, Brown, Black, Grey, Black.

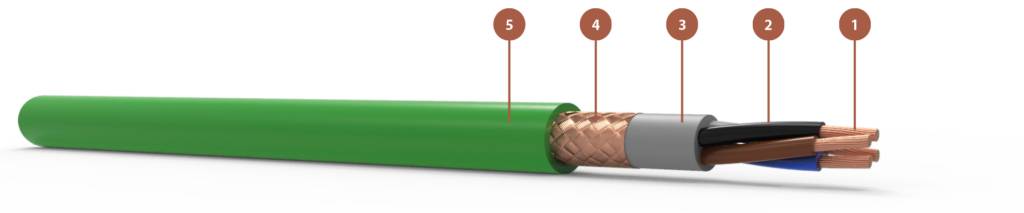

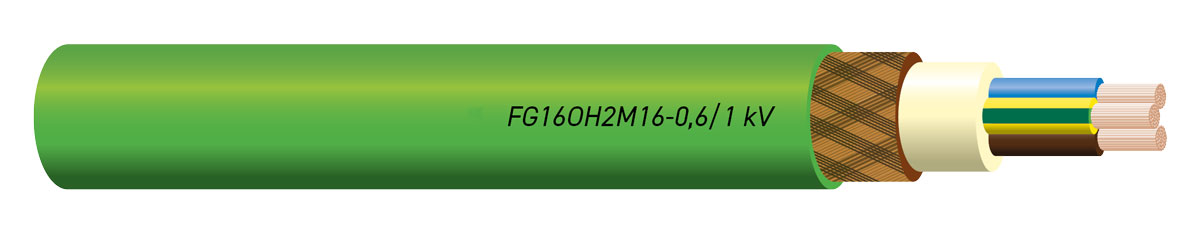

FG16OH2M16 Cable Construction

	CHARACTERISTICS	DESCRIPTION	REFERENCE
	Type of cable	FG16OH2M16
	Nominal Voltage	Uo/U 600/1000 V
①	Core	Class 5 flexible red copper	EN 60228
②	Insulation	G16 LSZH compound	EN 50363
③	Filler	LSZH Compound - inner sheath
④	Screening	Braided annealed red copper
⑤	Sheath	M16 LSZH compound green colour RAL 6018	EN 50363
	Temperature range	-15°C/ 90°C
	Testing voltage	4000 V AC
	Package	100 m thermo-shrinking material coils - Drums

FG16OH2M16–0.6/1 kV Technical Sheet

Conductor Cross-sections		MAX. Ø Conductor wires		Average insulation thickness		Average Sheath thickness	Outer diameter	Approx. Cable weight	Max. Electrical resistance (20° C)
		mm		mm		mm	MAX mm	g/m	ohm/km
2 cores x mm2
1.5		0.26		0.7		1.8	12	155	13.3
2.5		0.26		0.7		1.8	13	190	7.98
4		0.31		0.7		1.8	14.2	240	4.95
6		0.31		0.7		1.8	15.4	310	3.3
10		0.41		0.7		1.8	17.3	440	1.91
16		0.41		0.7		1.8	19.4	600	1.21
25		0.41		0.9		1.8	23	850	0.78
35		0.41		0.9		1.8	25.7	1130	0.554
50		0.41		1		1.8	29.3	1580	0.386
70		0.51		1.1		1.8	33.1	2050	0.272
95		0.51		1.1		2	37.4	2670	0.206
120		0.51		1.2		2.1	41.5	3330	0.161
150		0.51		1.4		2.2	46.1	4100	0.129
3 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	12.5	170	13.3
2.5		0.26		0.7		1.8	13.6	220	7.98
4		0.31		0.7		1.8	14.9	280	4.95
6		0.31		0.7		1.8	16.2	370	3.3
10		0.41		0.7		1.8	18.2	530	1.91
16		0.41		0.7		1.8	20.6	740	1.21
25		0.41		0.9		1.8	24.5	1060	0.78
35		0.41		0.9		1.8	27.3	1420	0.554
50		0.41		1		1.8	31.2	1960	0.386
70		0.51		1.1		1.9	35.6	2700	0.272
95		0.51		1.1		2	40	3430	0.206
120		0.51		1.2		2.1	44.4	4390	0.161
150		0.51		1.4		2.3	49.5	5400	0.129
185		0.51		1.6		2.4	55.2	6700	0.106
240		0.51		1.7		2.6	61.9	8700	0.0801
300		0.51		1.8		2.8	68	10700	0.0641
4 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	13.4	200	13.3
2.5		0.26		0.7		1.8	14.6	260	7.98
4		0.31		0.7		1.8	16	330	4.95
6		0.31		0.7		1.8	17.5	430	3.3
10		0.41		0.7		1.8	19.8	640	1.91
16		0.41		0.7		1.8	22.4	900	1.21
25		0.41		0.9		1.8	26.8	1300	0.78
3 cores + 1/2 green/yellow mm2
35	+1G 25	0.41		0.9		1.8	29.2	1650	0.554	0.78
50	+1G 25	0.41		1	0.9	1.8	32.4	2200	0.386	0.78
70	+1G 35	0.51	0.41	1.1	0.9	1.9	37	3000	0.272	0.554
95	+1G 50	0.51	0.41	1.1	1	2.1	42	3900	0.206	0.386
120	+1G 70	0.51		1.2	1.1	2.2	46.9	4794	0.161	0.272
150	+1G 95	0.51		1.4	1.1	2.4	52.5	6300	0.129	0.206
185	+1G 95	0.51		1.6	1.1	2.5	57.3	7600	0.106	0.206
240	+1G 150	0.51		1.7	1.4	2.7	65.5	10000	0.0801	0.129
300	+1G150	0.51		1.8	1.4	2.9	70.8	12000	0.0641	0.129
5 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	14.4	230	13.3
2.5		0.26		0.7		1.8	15.6	310	7.98
4		0.31		0.7		1.8	17.3	400	4.95
6		0.31		0.7		1.8	18.9	520	3.3
10		0.41		0.7		1.8	21.5	780	1.91
16		0.41		0.7		1.8	24.4	1120	1.21
25		0.41		0.9		1.8	29.3	1680	0.78
35		0.41		0.9		1.8	32.8	2150	0.554
50		0.41		1		2	38.2	3000	0.386

FG16OH2M16 Cable why choose HuaDong?

Our FG16OH2M16 Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
