FG16OH1M16-0.6/1kV Cable

What is FG16OH1M16 Cable?

FG16OH1M16 Cable is multicore core power cable, G16 rubber insulated, tape screen, LS0H thermoplastic sheathed. Resistant to fire propagation with a low emission of smoke and toxic and corrosive gases when exposed to fire.

FG16OH1M16 Cable Application:

FG16OH1M16 Cable for installation with fire risk area and where high presence of people Inside, in wet places and also outdoor, fixed installation on masonry and metal structures: admitted the underground laying.
Normally bound to the interconnection between the items of the machinery, including machine tools, when a certain degree of protection is required against electromagnetic interference.

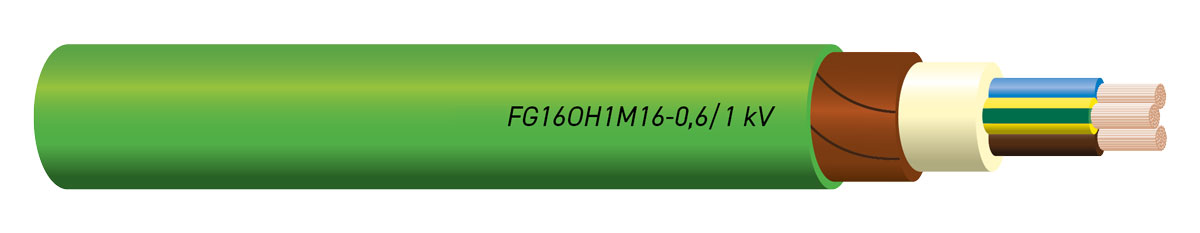

FG16OH1M16 Cable Construction：

1 – Flexible plain annealed copper wires class 5 CEI EN 60228
2 – Rubber G16
3 – LSOH Inner sheath
4 – Copper tape screen
5 – Thermoplastic LSOH M16

FG16OH1M16 Cable Cores Colour

2: Blue, Brown;
3: Green/Yellow, Blue, Brown; Brown, Black, Grey;
4: Green/Yellow, Brown, Black, Grey; Blue, Brown, Black, Grey;
5: Green/Yellow, Blue, Brown, Black, Grey; Blue, Brown, Black, Grey, Black.

FG16OH1M16–0.6/1 kV Technical Sheet

Conductor Cross-sections		MAX. Ø Conductor wires		Average insulation thickness		Average Sheath thickness	Outer diameter	Approx. Cable weight	Max. Electrical resistance (20° C)
		mm		mm		mm	MAX mm	g/m	ohm/km
2 cores x mm2
1.5		0.26		0.7		1.8	12	155	13.3
2.5		0.26		0.7		1.8	13	190	7.98
4		0.31		0.7		1.8	14.2	240	4.95
6		0.31		0.7		1.8	15.4	310	3.3
10		0.41		0.7		1.8	17.3	440	1.91
16		0.41		0.7		1.8	19.4	600	1.21
25		0.41		0.9		1.8	23	850	0.78
35		0.41		0.9		1.8	25.7	1130	0.554
50		0.41		1		1.8	29.3	1580	0.386
70		0.51		1.1		1.8	33.1	2050	0.272
95		0.51		1.1		2	37.4	2670	0.206
120		0.51		1.2		2.1	41.5	3330	0.161
150		0.51		1.4		2.2	46.1	4100	0.129
3 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	12.5	170	13.3
2.5		0.26		0.7		1.8	13.6	220	7.98
4		0.31		0.7		1.8	14.9	280	4.95
6		0.31		0.7		1.8	16.2	370	3.3
10		0.41		0.7		1.8	18.2	530	1.91
16		0.41		0.7		1.8	20.6	740	1.21
25		0.41		0.9		1.8	24.5	1060	0.78
35		0.41		0.9		1.8	27.3	1420	0.554
50		0.41		1		1.8	31.2	1960	0.386
70		0.51		1.1		1.9	35.6	2700	0.272
95		0.51		1.1		2	40	3430	0.206
120		0.51		1.2		2.1	44.4	4390	0.161
150		0.51		1.4		2.3	49.5	5400	0.129
185		0.51		1.6		2.4	55.2	6700	0.106
240		0.51		1.7		2.6	61.9	8700	0.0801
300		0.51		1.8		2.8	68	10700	0.0641
4 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	13.4	200	13.3
2.5		0.26		0.7		1.8	14.6	260	7.98
4		0.31		0.7		1.8	16	330	4.95
6		0.31		0.7		1.8	17.5	430	3.3
10		0.41		0.7		1.8	19.8	640	1.91
16		0.41		0.7		1.8	22.4	900	1.21
25		0.41		0.9		1.8	26.8	1300	0.78
3 cores + 1/2 green/yellow mm2
35	+1G 25	0.41		0.9		1.8	29.2	1650	0.554	0.78
50	+1G 25	0.41		1	0.9	1.8	32.4	2200	0.386	0.78
70	+1G 35	0.51	0.41	1.1	0.9	1.9	37	3000	0.272	0.554
95	+1G 50	0.51	0.41	1.1	1	2.1	42	3900	0.206	0.386
120	+1G 70	0.51		1.2	1.1	2.2	46.9	4794	0.161	0.272
150	+1G 95	0.51		1.4	1.1	2.4	52.5	6300	0.129	0.206
185	+1G 95	0.51		1.6	1.1	2.5	57.3	7600	0.106	0.206
240	+1G 150	0.51		1.7	1.4	2.7	65.5	10000	0.0801	0.129
300	+1G150	0.51		1.8	1.4	2.9	70.8	12000	0.0641	0.129
5 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	14.4	230	13.3
2.5		0.26		0.7		1.8	15.6	310	7.98
4		0.31		0.7		1.8	17.3	400	4.95
6		0.31		0.7		1.8	18.9	520	3.3
10		0.41		0.7		1.8	21.5	780	1.91
16		0.41		0.7		1.8	24.4	1120	1.21
25		0.41		0.9		1.8	29.3	1680	0.78
35		0.41		0.9		1.8	32.8	2150	0.554
50		0.41		1		2	38.2	3000	0.386
