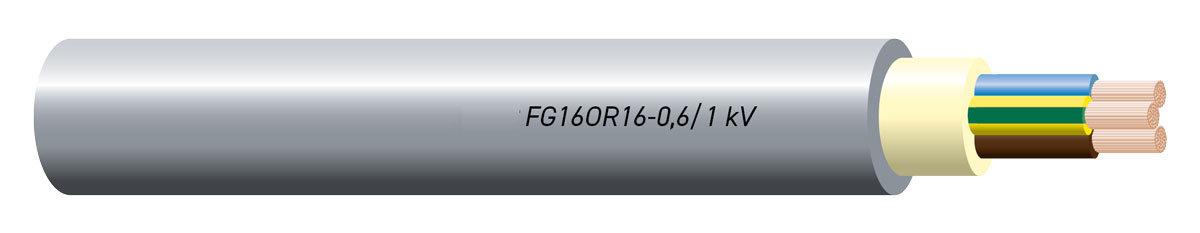

FG16OR16–0.6/1 kV Cable

What is FG16OR16 Cable?

FG16OR16–0.6/1 kV is multicore power cables, G16 rubber insulated, PVC sheathed, with flexible conductors for fixed installations. Resistant to fire propagation with reduced emission of corrosive gases under fire conditions.

FG16OR16 Cable Application:

FG16OR16 Cable For indoor and outdoor installation, also in wet locations; for fixed installation in surface mounted or on metallic structures; direct laying in earth permitted.
FG16OR16 Cables are suitable for general applications in construction works subject to fire reaction requirements; for bundle installations with in places at high fire risk in accordance with the CEI 64-8/7 having reaction fire class Cca-s3, d1, a3.

FG16OR16 Cable Cores Colour

2: Blue, Brown;
3: Green/Yellow, Blue, Brown; Brown, Black, Grey;
4: Green/Yellow, Brown, Black, Grey; Blue, Brown, Black, Grey;
5: Green/Yellow, Blue, Brown, Black, Grey; Blue, Brown, Black, Grey, Black.

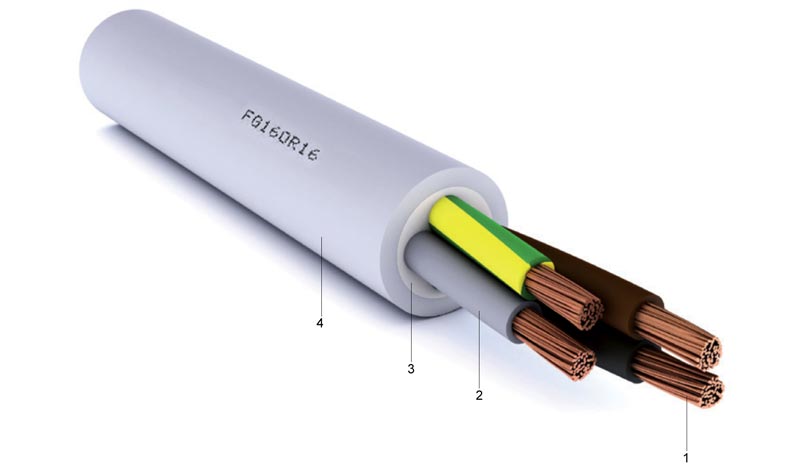

FG16OR16 Cable Construction:


1、fine wired copper conductor, class 5
2、rigid EPM rubber, G16 quality
3、thermoplastic compound, fire resistend, non water absorbing
4、anti abrasive PVC compound R15 quality, fire resistend, reduced wather permeability

FG16OR16 Cable Technical data:

Conductor Cross-sections		MAX. Ø Conductor wires		Average insulation thickness		Average Sheath thickness	Outer diameter	Approx. Cable weight	Max. Electrical resistance (20° C)
		mm		mm		mm		g/m	ohm/km
2 cores x mm2
1.5		0.26		0.7		1.8	12	150	13.3
2.5		0.26		0.7		1.8	13	190	7.98
4		0.31		0.7		1.8	14.2	240	4.95
6		0.31		0.7		1.8	15.4	310	3.3
10		0.41		0.7		1.8	17.3	440	1.91
16		0.41		0.7		1.8	19.4	600	1.21
25		0.41		0.9		1.8	23	869	0.78
35		0.41		0.9		1.8	25.7	1130	0.554
50		0.41		1		1.8	29.3	1580	0.386
70		0.51		1.1		1.8	33.1	2050	0.272
95		0.51		1.1		2	37.4	2670	0.206
120		0.51		1.2		2.1	41.5	3330	0.161
150		0.51		1.4		2.2	46.1	4100	0.129
3 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	12.5	170	13.3
2.5		0.26		0.7		1.8	13.6	220	7.98
4		0.31		0.7		1.8	14.9	280	4.95
6		0.31		0.7		1.8	16.2	370	3.3
10		0.41		0.7		1.8	18.2	530	1.91
16		0.41		0.7		1.8	20.6	740	1.21
25		0.41		0.9		1.8	24.5	1060	0.78
35		0.41		0.9		1.8	27.3	1420	0.554
50		0.41		1		1.8	31.2	1960	0.386
70		0.51		1.1		1.9	35.6	2700	0.272
95		0.51		1.1		2	40.4	3430	0.206
120		0.51		1.2		2.1	44.4	4390	0.161
150		0.51		1.4		2.3	49.5	5400	0.129
185		0.51		1.6		2.4	55.2	6700	0.106
240		0.51		1.7		2.6	61.9	8700	0.0801
4 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	13.4	200	13.3
2.5		0.26		0.7		1.8	14.6	260	7.98
4		0.31		0.7		1.8	16	330	4.95
6		0.31		0.7		1.8	17.5	430	3.3
10		0.41		0.7		1.8	19.8	640	1.91
16		0.41		0.7		1.8	22.4	900	1.21
25		0.41		0.9		1.8	26.8	1300	0.78
35*		0.41		0.9		1.8	27.9	1706	0.554
50*		0.41		1		1.8	32.1	2374	0.386
70*		0.51		1.1		1.9	36.9	3278	0.272
95*		0.51		1.1		2.1	41	4226	0.206
120*		0.51		1.2		2.2	45.9	5410	0.161
150*		0.51		1.4		2.4	50.3	6829	0.129
185*		0.51		1.6		2.5	56.2	8150	0.106
3 cores + 1/2 green/yellow mm2
35	+25	0.41		0.9		1.8	29.2	1650	0.554	0.78
50	+25	0.41		1	0.9	1.8	32.4	2200	0.386	0.78
70	+35	0.51	0.41	1.1	0.9	1.9	37	3000	0.272	0.554
95	+50	0.51	0.41	1.1	1	2.1	42	3900	0.206	0.386
120	+70	0.51		1.2	1.1	2.2	46.9	4811	0.161	0.272
150	+95	0.51		1.4	1.1	2.4	52.5	6300	0.129	0.206
185	+95	0.51		1.6	1.1	2.5	57.3	7600	0.106	0.206
240	+150	0.51		1.7	1.4	2.7	65.5	10000	0.0801	0.129
300	+150	0.51		1.8	1.4	2.9	70.8	12000	0.0641	0.129
5 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	14.4	230	13.3
2.5		0.26		0.7		1.8	15.6	310	7.98
4		0.31		0.7		1.8	17.3	400	4.95
6		0.31		0.7		1.8	18.9	520	3.3
10		0.41		0.7		1.8	21.5	780	1.91
16		0.41		0.7		1.8	24.4	1120	1.21
25		0.41		0.9		1.8	29.3	1680	0.78
35		0.41		0.9		1.8	32.8	2150	0.554
50		0.41		1		2	38.2	3000	0.386
70*		0.51		1.1		2.1	40.6	4001	0.272
