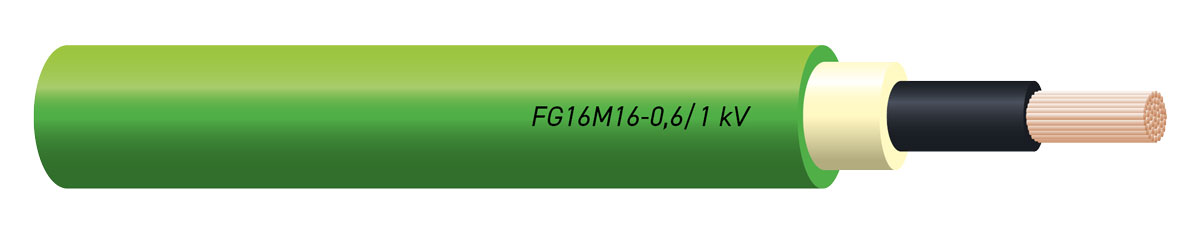

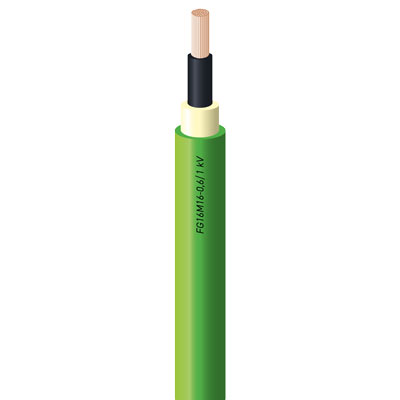

What is the FG16M16?
FG16M16 is single core flexible power cable, HEPR insulated (G16 quality), thermoplastic sheathed M16 quality, with special fire reaction characteristics according to Costruction Products Regulation (CPR). Resistant to fire propagation with a low emission of smoke and toxic and corrosive gases when exposed to fire.
FG16M16 0.6/1kv Application:
FG16M16 for indoor and outdoor installations, also in wet locations; for fixed installation on masonry or on metallic structures; direct laying in earth is permitted.
FG16M16 Cables are suitable for general applications in construction work subject to fire reaction requirements; for bundle installations with high risk of fire due to the high crowd density or due to the long time for displacement or to the big damage to animals or things, according to the norm CEI 64-8:V4 section 751.04.3a, having fire reaction class Cca-s1b,d1,a1.
FG16M16 0.6/1kv Specifications
|
Conductor Cross- sections |
MAX. Ø conductor wires |
Average insulation thickness |
Average sheath thickness |
Outer diameter |
Max. Electrical resistance (20° C) |
|
|
mm |
mm |
|
MAX mm |
g/m |
ohm/km |
|
1 core x mm2 |
|
1.5 |
0.26 |
0.7 |
1.4 |
8.2 |
75 |
13.3 |
|
2.5 |
0.26 |
0.7 |
1.4 |
8.7 |
94 |
7.98 |
|
4 |
0.31 |
0.7 |
1.4 |
9.3 |
113 |
4.95 |
|
6 |
0.31 |
0.7 |
1.4 |
9.9 |
136 |
3.3 |
|
10 |
0.41 |
0.7 |
1.4 |
10.9 |
189 |
1.91 |
|
16 |
0.41 |
0.7 |
1.4 |
11.4 |
246 |
1.21 |
|
25 |
0.41 |
0.9 |
1.4 |
13.2 |
343 |
0.78 |
|
35 |
0.41 |
0.9 |
1.4 |
14.6 |
438 |
0.554 |
|
50 |
0.41 |
1 |
1.4 |
16.4 |
590 |
0.386 |
|
70 |
0.51 |
1.1 |
1.4 |
18.3 |
785 |
0.272 |
|
95 |
0.51 |
1.1 |
1.5 |
20.4 |
1003 |
0.206 |
|
120 |
0.51 |
1.2 |
1.5 |
22.4 |
1250 |
0.161 |
|
150 |
0.51 |
1.4 |
1.6 |
24.8 |
1540 |
0.129 |
|
185 |
0.51 |
1.6 |
1.7 |
27.2 |
1900 |
0.106 |
|
240 |
0.51 |
1.7 |
1.8 |
30.4 |
2410 |
0.0801 |
|
300 |
0.51 |
1.8 |
1.8 |
33 |
3031 |
0.0641 |
|
500* |
0.61 |
2.2 |
2.1 |
39 |
4900 |
0.0384 |
|
630* |
0.61 |
2.4 |
2.2 |
43.4 |
6257 |
0.0287 |
