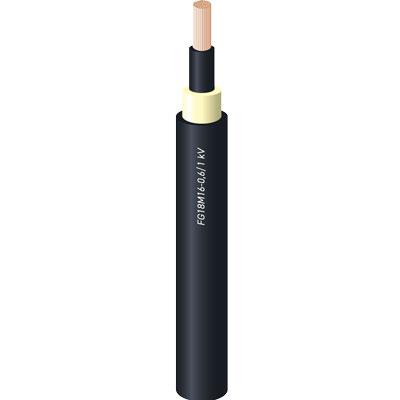

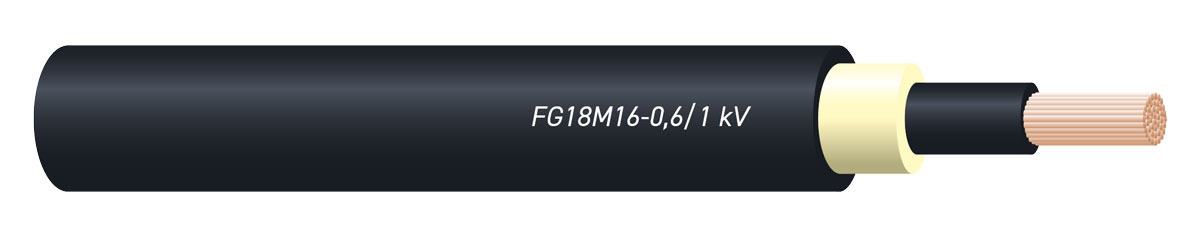

What is FG18M16 Cable?
FG18M16 Cable is single core power cables, rubber insulated (G18), M16 thermoplastic sheathed, with flexible conductors for fixed installation. Fire retardant with low emission of smoke and toxic and corrosive gases and fumes (non-toxic - halogen-free – LS0H).
FG18M16 Cable Application:
FG18M16 Cable suitable for bundle installations in environments with high risk in case of fire for the high population density or for the long time for displacement, or for the high damage to animals and things such as, for example, air terminals, railway stations, harbour stations, subways, road and rail tunnels having fire reaction class B2ca-s1a,d1,a1 .
FG18M16 Cable suitables for indoor or outdoor environments, even wet, for fixed installation in laying air, in pipes or ducts, on masonry, metal structures or suspended; buried installation allowed.
Further instructions and warnings for the use of these cables are given in CEI 20-67 Standard.
FG18M16 Cable Specification:
|
Conductor Cross- sections |
MAX. Ø conductor wires |
Average insulation thickness |
Average sheath thickness |
Outer diameter |
Approx. Cable weight |
Max. Electrical resistance (20° C) |
|
mm |
mm |
|
MAX mm |
g/m |
ohm/km |
|
1 core x mm2 |
|
1,5* |
0,26 |
1,0 |
1,4 |
8,4 |
76 |
13,3 |
|
2,5* |
0,26 |
1,0 |
1,4 |
8,9 |
90 |
7,98 |
|
4* |
0,31 |
1,0 |
1,4 |
9,4 |
110 |
4,95 |
|
6* |
0,31 |
1,0 |
1,4 |
10,0 |
132 |
3,30 |
|
10 |
0,41 |
1,0 |
1,4 |
12,5 |
189 |
1,91 |
|
16 |
0,41 |
1,0 |
1,4 |
13,6 |
239 |
1,21 |
|
25 |
0,41 |
1,2 |
1,4 |
15,6 |
356 |
0,780 |
|
35 |
0,41 |
1,2 |
1,4 |
16,6 |
465 |
0,554 |
|
50 |
0,41 |
1,4 |
1,4 |
18,7 |
636 |
0,386 |
|
70 |
0,51 |
1,4 |
1,5 |
20,7 |
843 |
0,272 |
|
95 |
0,51 |
1,6 |
1,8 |
22,5 |
1106 |
0,206 |
|
120 |
0,51 |
1,6 |
1,9 |
25,0 |
1373 |
0,161 |
|
150 |
0,51 |
1,8 |
1,9 |
27,5 |
1679 |
0,129 |
|
185 |
0,51 |
2,0 |
2,0 |
29,3 |
2020 |
0,106 |
|
240 |
0,51 |
2,2 |
2,0 |
32,5 |
2563 |
0,0801 |
|
300 |
0,51 |
2,4 |
2,1 |
36,3 |
3520 |
0,0641 |
FG18M16 Cable why choose HuaDong?
Huadong Cable Group as a special FG18M16 Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in FG18M16 Cable, but also we have 15 senior engineers, they can free design the FG18M16 cable size according to client’s requirement.
Our FG18M16 cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
