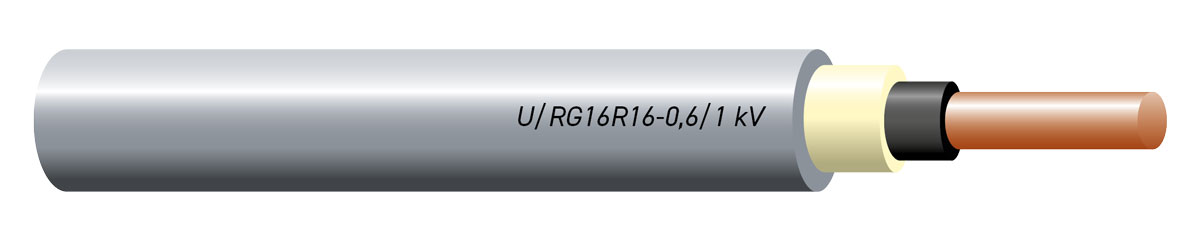

What is RG16R16 / UG16R16 Cable?
RG16R16 / UG16R16 Power cables, high quality G16 insulated ethylene-propylene rubber cables, PVC sheath, with special fire reaction characteristics and according to Costruction Products Regulation (CPR). Fire retardant with low emission of smoke and toxic and corrosive gases and fumes (non-toxic - halogen-free – LS0H).
RG16R16 / UG16R16 Cable Application:
UG16/RG16 cable For internal and external installations, also in wet locations and for external installations; for fixed installation in surface mounted or on metallic structures; direct laying in earth permitted.
UG16/RG16 cables are suitable for general applications in construction works subject to fire reaction requirements; for bundle installations with high fire risk, having fire reaction class Cca-s1b,d1,a1.
UG16R16-0.6/1 kV Cable Technical Sheet
|
Conductor Crosssections |
MAX. Ø conductor
wires |
Average insulation
thickness |
Average sheath
thickness |
Outer diameter |
Approx. Cable weight |
Max. Electrical resistance (20° C) |
|
|
mm |
mm |
mm |
MAX mm |
g/m |
ohm/km |
|
1 conduttore x mm2 / 1 core x mm2 |
|
|
|
|
|
|
|
1.5 |
1 |
0.7 |
1.4 |
7.9 |
51 |
12.1 |
|
2.5 |
1 |
0.7 |
1.4 |
8.4 |
79 |
7.41 |
|
4 |
1 |
0.7 |
1.4 |
9 |
96 |
4.61 |
|
6 |
1 |
0.7 |
1.4 |
9.6 |
117 |
3.08 |
RG16R16-0.6/1 kV Cable Technical Sheet
|
Conductor Crosssections |
MAX. Ø conductor
wires |
Average insulation
thickness |
Average sheath
thickness |
Outer diameter |
Approx. Cable weight |
Max. Electrical resistance (20° C) |
|
|
mm |
mm |
mm |
MAX mm |
g/m |
ohm/km |
|
10 |
6 |
0.7 |
1.4 |
10.5 |
172 |
1.83 |
|
16 |
6 |
0.7 |
1.4 |
11 |
235 |
1.15 |
|
25 |
6 |
0.9 |
1.4 |
12.7 |
334 |
0.727 |
|
35 |
6 |
0.9 |
1.4 |
14 |
434 |
0.524 |
|
50 |
6 |
1 |
1.4 |
15.7 |
550 |
0.387 |
|
70 |
12 |
1.1 |
1.4 |
17.6 |
760 |
0.268 |
|
95 |
15 |
1.1 |
1.5 |
19.6 |
1017 |
0.193 |
|
120 |
18 |
1.2 |
1.5 |
21.5 |
1160 |
0.153 |
|
150 |
18 |
1.4 |
1.6 |
23.8 |
1548 |
0.124 |
|
185 |
30 |
1.6 |
1.7 |
26.2 |
1900 |
0.0991 |
|
240 |
34 |
1.7 |
1.8 |
29.1 |
2500 |
0.0754 |
|
300 |
34 |
1.8 |
1.8 |
31.7 |
3100 |
0.0601 |
|
400 |
53 |
2 |
2 |
36.2 |
4100 |
0.047 |
|
500 |
53 |
2.2 |
2.1 |
39.8 |
5100 |
0.0366 |
|
630 |
53 |
2.4 |
2.2 |
44.1 |
6200 |
0.0283 |
RG16R16 / UG16R16 Cable why choose HuaDong?
Huadong Cable Group as a special RG16R16 / UG16R16 Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in RG16R16 / UG16R16 Cable, but also we have 15 senior engineers, they can free design the RG16R16 / UG16R16 Cable size according to client’s requirement.
Our RG16R16 / UG16R16 Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
