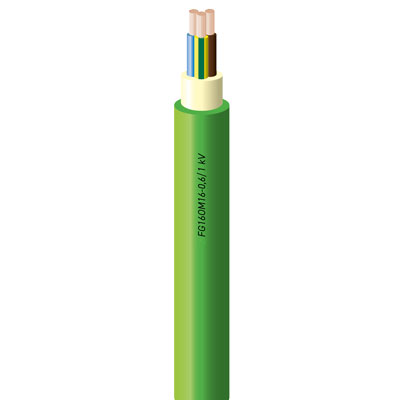

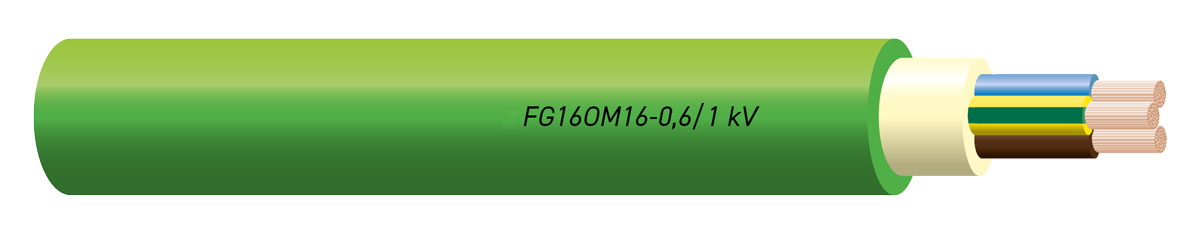

FG16OM16–0.6/1 kV Cable

What is FG16OM16 Cable?

FG16OM16 Cable is multicore flexible power cable for fixed installation,HEPR insulated (G16 quality), thermoplastic sheathed M16 quality, with special fire reaction characteristics according to Costruction Products Regulation (CPR). Multi-core flexible cable for fixed installation. Resistant to fire propagation with a low emission of smoke and toxic and corrosive gases when exposed to fire.

FG16OM16 Cable Application:

FG16OM16 Cable for indoor and outdoor installations, also in wet locations; for fixed installation on masonry or on metallic structures; direct laying in earth is permitted.
FG16OM16 Cables are suitable for general applications in construction works subject to fire reaction requirements; for bundle installations with high risk of fire due to the high crowd density or due to the long time for displacement or to the big damage to animals or things, according to the standard CEI 64-8/7 having fire reaction class Cca,s1b,d1,a1.
FG16OM16 Cable use is advised also in places at risk of explosion or fire, which include thermal power stations and power stations, chemical plants and the petrochemical ones, steelworks, fuel installations, etc.

FG16OM16 Cable Cores Colour

2: Blue, Brown;
3: Green/Yellow, Blue, Brown; Brown, Black, Grey;
4: Green/Yellow, Brown, Black, Grey; Blue, Brown, Black, Grey;
5: Green/Yellow, Blue, Brown, Black, Grey; Blue, Brown, Black, Grey, Black.

FG16OM16 Cable Specifications

Conductor Cross-sections		MAX. Ø Conductor wires		Average insulation thickness		Average Sheath thickness	Outer diameter	Approx. Cable weight	Max. Electrical resistance (20° C)
		mm		mm		mm	MAX mm	g/m	ohm/km
2 cores x mm2
1.5		0.26		0.7		1.8	12	155	13.3
2.5		0.26		0.7		1.8	13	190	7.98
4		0.31		0.7		1.8	14.2	240	4.95
6		0.31		0.7		1.8	15.4	310	3.3
10		0.41		0.7		1.8	17.3	440	1.91
16		0.41		0.7		1.8	19.4	600	1.21
25		0.41		0.9		1.8	23	850	0.78
35		0.41		0.9		1.8	25.7	1130	0.554
50		0.41		1		1.8	29.3	1580	0.386
70		0.51		1.1		1.8	33.1	2050	0.272
95		0.51		1.1		2	37.4	2670	0.206
120		0.51		1.2		2.1	41.5	3330	0.161
150		0.51		1.4		2.2	46.1	4100	0.129
3 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	12.5	170	13.3
2.5		0.26		0.7		1.8	13.6	220	7.98
4		0.31		0.7		1.8	14.9	280	4.95
6		0.31		0.7		1.8	16.2	370	3.3
10		0.41		0.7		1.8	18.2	530	1.91
16		0.41		0.7		1.8	20.6	740	1.21
25		0.41		0.9		1.8	24.5	1060	0.78
35		0.41		0.9		1.8	27.3	1420	0.554
50		0.41		1		1.8	31.2	1960	0.386
70		0.51		1.1		1.9	35.6	2700	0.272
95		0.51		1.1		2	40	3430	0.206
120		0.51		1.2		2.1	44.4	4390	0.161
150		0.51		1.4		2.3	49.5	5400	0.129
185		0.51		1.6		2.4	55.2	6700	0.106
240		0.51		1.7		2.6	61.9	8700	0.0801
300		0.51		1.8		2.8	68	10700	0.0641
4 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	13.4	200	13.3
2.5		0.26		0.7		1.8	14.6	260	7.98
4		0.31		0.7		1.8	16	330	4.95
6		0.31		0.7		1.8	17.5	430	3.3
10		0.41		0.7		1.8	19.8	640	1.91
16		0.41		0.7		1.8	22.4	900	1.21
25		0.41		0.9		1.8	26.8	1300	0.78
3 cores + 1/2 green/yellow mm2
35	+1G 25	0.41		0.9		1.8	29.2	1650	0.554	0.78
50	+1G 25	0.41		1	0.9	1.8	32.4	2200	0.386	0.78
70	+1G 35	0.51	0.41	1.1	0.9	1.9	37	3000	0.272	0.554
95	+1G 50	0.51	0.41	1.1	1	2.1	42	3900	0.206	0.386
120	+1G 70	0.51		1.2	1.1	2.2	46.9	4794	0.161	0.272
150	+1G 95	0.51		1.4	1.1	2.4	52.5	6300	0.129	0.206
185	+1G 95	0.51		1.6	1.1	2.5	57.3	7600	0.106	0.206
240	+1G 150	0.51		1.7	1.4	2.7	65.5	10000	0.0801	0.129
300	+1G150	0.51		1.8	1.4	2.9	70.8	12000	0.0641	0.129
5 cores x mm2 with green/yellow
1.5		0.26		0.7		1.8	14.4	230	13.3
2.5		0.26		0.7		1.8	15.6	310	7.98
4		0.31		0.7		1.8	17.3	400	4.95
6		0.31		0.7		1.8	18.9	520	3.3
10		0.41		0.7		1.8	21.5	780	1.91
16		0.41		0.7		1.8	24.4	1120	1.21
25		0.41		0.9		1.8	29.3	1680	0.78
35		0.41		0.9		1.8	32.8	2150	0.554
50		0.41		1		2	38.2	3000	0.386
