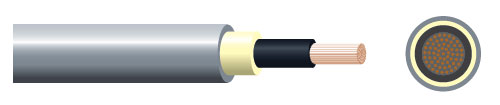

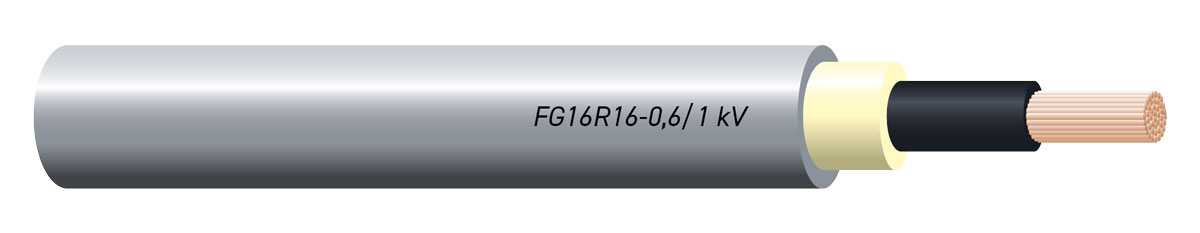

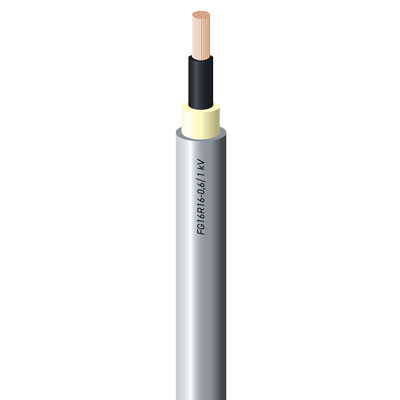

What is FG16R16 Cable?
FG16R16–0.6/1 kV is single core power cables, G16 rubber insulated, PVC sheathed, with flexible conductors for fixed installation. Resistant to fire propagation with reduced emission of corrosive gases under fire conditions.
FG16R16 Cable Application:
FG16R16 Cable for indoor and outdoor installation, also in wet locations; for fixed installation in surface mounted or on metallic structures; direct laying in earth permitted.
FG16R16 Cables are suitable for general applications in construction works subject to fire reaction requirements; for bundle installations with in places at high fire risk in accordance with the CEI 64-8/7 having reaction fire class Cca-s3, d1, a3.
FG16R16 Cable Tehnical Characteristics:
CPR class: Cca – s3,d1,a3
Test voltage: 4 kV
Rated voltage: 0.6/1 kV
Bending radius (min): single-core – 6D
Min. laying temperature: -15°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C
FG16R16 Cable Tehnical Sheet:
|
Conductor Cross- sections |
MAX. Ø conductor wires |
Average insulation thickness |
Average sheath thickness |
Outer diameter |
Approx. Cable weight |
Max. Electrical resistance (20° C) |
|
|
mm |
mm |
mm |
MAX mm |
g/m |
ohm/km |
|
1 core x mm2 |
|
1.5 |
0.26 |
0.7 |
1.4 |
8.2 |
79 |
13.3 |
|
2.5 |
0.26 |
0.7 |
1.4 |
8.7 |
94 |
7.98 |
|
4 |
0.31 |
0.7 |
1.4 |
9.3 |
112 |
4.95 |
|
6 |
0.31 |
0.7 |
1.4 |
9.9 |
139 |
3.3 |
|
10 |
0.41 |
0.7 |
1.4 |
10.9 |
188 |
1.91 |
|
16 |
0.41 |
0.7 |
1.4 |
11.4 |
230 |
1.21 |
|
25 |
0.41 |
0.9 |
1.4 |
13.2 |
331 |
0.78 |
|
35 |
0.41 |
0.9 |
1.4 |
14.6 |
425 |
0.554 |
|
50 |
0.41 |
1 |
1.4 |
16.4 |
579 |
0.386 |
|
70 |
0.51 |
1.1 |
1.4 |
18.3 |
784 |
0.272 |
|
95 |
0.51 |
1.1 |
1.5 |
20.4 |
989 |
0.206 |
|
120 |
0.51 |
1.2 |
1.5 |
22.4 |
1250 |
0.161 |
|
150 |
0.51 |
1.4 |
1.6 |
24.8 |
1540 |
0.129 |
|
185 |
0.51 |
1.6 |
1.7 |
27.2 |
1890 |
0.106 |
|
240 |
0.51 |
1.7 |
1.8 |
30.4 |
2410 |
0.0801 |
|
300 |
0.51 |
1.8 |
1.8 |
33 |
3030 |
0.0641 |
|
400 |
0.51 |
2 |
2 |
37.7 |
4020 |
0.0486 |
|
500* |
0.61 |
2.2 |
2.1 |
39 |
4159 |
0.0384 |
|
630* |
0.61 |
2.4 |
2.2 |
42.6 |
4542 |
0.0287 |
FG16R16 Cable why choose HuaDong?
Huadong Cable Group as a special FG16R16 Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in FG16R16 Cable, but also we have 15 senior engineers, they can free design theFG16R16 Cable size according to client’s requirement.
Our FG16R16 Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
