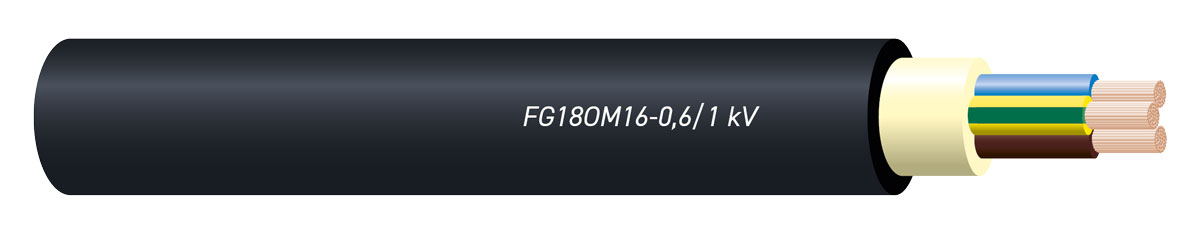

FG18OM16 0.6/1 kV Cable

What is FG18OM16 Cable?

FG18OM16 cable is Multicore power cable, rubber insulated (G18), M16 thermoplastic sheathed, with flexible conductors for fixed installation. Fire retardant with low emission of smoke and toxic and corrosive gases and fumes (non-toxic - halogen-free – LS0H).

FG18OM16 Cable Application:

FG18OM16 cable suitable for bundle installations in environments with high risk in case of fire for the high population density or for the long time for displacement, or for the high damage to animals and things such as, for example, air terminals, railway stations, harbour stations, subways, road and rail tunnels having fire reaction class B2ca-s1a,d1,a1.

FG18OM16 cable suitable for indoor or outdoor environments, even wet, for fixed installation in laying air, in pipes or ducts, on masonry, metal structures or suspended; buried installation allowed.
Further instructions and warnings for the use of these cables are given in CEI 20-67 Standard.

FG18OM16 Cable Cores Colour:

2: Blue, Brown;
3: Green/Yellow, Blue, Brown; Brown, Black, Grey;
4: Green/Yellow, Brown, Black, Grey; Blue, Brown, Black, Grey;
5: Green/Yellow, Blue, Brown, Black, Grey; Blue, Brown, Black, Grey, Black.

FG18OM16 Cable Specifications

Conductor Cross-sections	MAX. Ø Conductor wires	Average insulation thickness	Average Sheath thickness	Outer diameter	Approx. Cable weight	Max. Electrical resistance (20° C)
	mm	mm	mm	MAX mm	g/m	ohm/km
2 cores x mm2
1,5	0.26	1	1.8	12.1	184	13.3
2,5	0.26	1	1.8	13.1	217	7.98
4	0.31	1	1.8	14.2	271	4.95
6	0.31	1	1.8	15.3	335	3.3
10	0.41	1	1.8	17.3	466	1.91
16*	0.41	1	1.8	19.3	626	1.21
25*	0.41	1.2	1.8	22.7	900	0.78
35*	0.41	1.2	1.8	24.9	1187	0.554
50*	0.41	1.4	1.8	28.7	1659	0.386
70*	0.51	1.4	1.8	33.1	2153	0.272
95*	0.51	1.6	2	37.4	2804	0.206
120*	0.51	1.6	2.1	41.5	3497	0.161
150*	0.51	1.8	2.2	46.1	4305	0.129
3 cores x mm2 with green/yellow
1,5	0.26	1	1.8	12.7	199	13.3
2,5	0.26	1	1.8	13.7	241	7.98
4	0.31	1	1.8	14.9	307	4.95
6	0.31	1	1.8	16.1	387	3.3
10*	0.41	1	1.8	18.3	557	1.91
16*	0.41	1	1.8	20.4	777	1.21
25*	0.41	1.2	1.8	24.1	1113	0.78
35*	0.41	1.2	1.8	26.5	1491	0.554
50*	0.41	1.4	1.9	30.8	2058	0.386
70*	0.51	1.4	2	34.4	2835	0.272
95*	0.51	1.6	2.2	38.2	3602	0.206
120*	0.51	1.6	2.5	43	4610	0.161
150*	0.51	1.8	2.4	47	5670	0.129
185*	0.51	2	2.6	52.3	7035	0.106
240*	0.51	2.2	2.8	58.7	9135	0.0801
4 cores x mm2 with green/yellow
1,5	0.26	1	1.8	13.6	227	13.3
2,5	0.26	1	1.8	14.7	281	7.98
4	0.31	1	1.8	16.1	361	4.95
6	0.31	1	1.8	17.4	459	3.3
10	0.41	1	1.8	19.8	672	1.91
16*	0.41	1	1.8	22.2	945	1.21
25*	0.41	1.2	1.8	26.4	1365	0.78
35*	0.41	1.2	1.8	29.2	1763	0.554
50*	0.41	1.4	1.8	34	2473	0.386
70*	0.51	1.4	1.9	38.3	3369	0.272
95*	0.51	1.6	2	43.3	4359	0.206
120*	0.51	1.6	2.1	47.8	5465	0.161
150*	0.51	1.8	2.3	52.3	6746	0.129
185*	0.51	2	2.4	58.1	8180	0.106
240*	0.51	2.2	2.6	65	12000	0.0801
3 cores + 1/2 green/yellow mm2
35*   +25	0.41	1.2	1.8	28.4	1733	0.554    0.78
50*   +25	0.41	1.4	2	32.2	2310	0.386    0.78
70*   +35	0.51	1.4	2.1	36	3150	0.272    0.554
95*   +50	0.51	1.6	2.2	41	4095	0.206    0.386
120*   +70	0.51	1.6	2.4	45.4	4935	0.161    0.272
150*   +95	0.51	1.8	2.5	50	6615	0.129    0.206
185*   +95	0.51	2	2.7	54.5	7980	0.106    0.206
240*   +120	0.51	2.2	2.9	62	10500	0.0801    0.129
5 cores x mm2 with green/yellow
1,5	0.26	1	1.8	14.6	266	13.3
2,5	0.26	1	1.8	15.8	332	7.98
4	0.31	1	1.8	17.3	430	4.95
6	0.31	1	1.8	18.8	551	3.3
10	0.41	1	1.8	21.5	819	1.91
16*	0.41	1	1.8	24.2	1108	1.21
25*	0.41	1.2	1.8	28.8	1642	0.78
35*	0.41	1.2	1.8	32.2	2166	0.55
50*	0.41	1.4	1.8	37.5	3053	0.386
