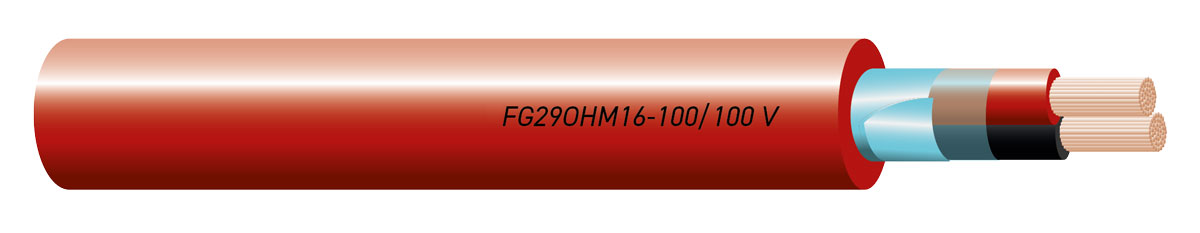

What is FG29OHM16 Cable?
FG29OHM16-100/100V Cables for applications in fixed automatic fire alarm detection systems, fire resistant, fire retardant, halogen-free. FG29OHM16 Cable can be used to connecting the devices of automatic fixed systems of detection and manual fire alarm systems, connected or not to extinguishing systems or to another protection system (both active and passive type), intended to be installed in buildings, regardless of the intended use. They are not suitable for other uses such as emergency lighting, power supply of forced smoke and heat evacuation systems, electric lock or emergency controls or other similar applications with operating voltage greater than 100 V AC
FG29OHM16 Cable Application
FG29OHM16 Cable Can be used to connect the equipment of fixed automatic revelation and manual fire alarm, whether or not linked to extinguishing systems or other protection system (both active than passive type), intended to be installed in buildings, independently of the intended use.
FG29OHM16 Cables are not suitable for other uses such as emergency lighting, power systems, forced evacuation of smoke and heat, electric or emergency controls or other similar applications with operating voltage exceeding 100 V AC for which you have to use the cables to CEI 20-45.
FG29OHM16 Cable Suitable in the most risky environments in the event of a fire, such as health facilities, entertainment venues and entertainment in general, gyms and sports centers. Hotels, guest houses, motels, villages, tourist residences - hotels. Schools of every order, grade and type. Exhibitors and / or retailers. Companies and offices with more than 300 people present; Libraries and archives, museums, galleries, exhibitions and exhibitions. Buildings intended for civil use, with a fire height of more than 24m.
FG29OHM16 Cable Construction and Electrical Properties:
|
Conductor |
Flexible Cu class 5 |
|
Insulation |
Elastomeric silicone based compound G29 |
|
Sheath |
Thermoplastic LSZH, M16 quality red |
|
Drain wire |
Tinned Cu |
|
Shield |
Al/PET |
|
Nominal voltage |
100/100V |
|
Test voltage |
2000V |
|
Operating temperature |
-15°C +90°C |
|
Min bending radius |
10 x ext.diam. |
FG29OHM16 Cable Specifications
|
Conductor Cross-sections |
Average insulation thickness |
Average Sheath thickness |
Outer diameter |
Max. Electrical resistance (20°C) |
|
|
mm |
mm |
MIN mm |
MAX mm |
ohm/km |
|
2 cores x mm2 |
|
0.5 |
0.5 |
0.8 |
5.4 |
7.7 |
39 |
|
0.75 |
0.5 |
0.8 |
5.8 |
7.9 |
26 |
|
1 |
0.5 |
0.8 |
6.1 |
8.4 |
19.5 |
|
1.5 |
0.6 |
0.9 |
7.2 |
9.5 |
13.3 |
|
2.5 |
0.7 |
1 |
8.4 |
11.4 |
7.98 |
|
4 |
0.7 |
1 |
10.1 |
13.1 |
4.95 |
|
6 |
0.7 |
1 |
11.4 |
14.4 |
3.3 |
|
4 cores x mm2 |
|
0.5 |
0.5 |
0.8 |
6.1 |
8.8 |
39 |
|
0.75 |
0.5 |
0.8 |
6.6 |
9.2 |
26 |
|
1 |
0.5 |
0.8 |
6.9 |
9.5 |
19.5 |
|
1.5 |
0.6 |
0.9 |
8.2 |
10.7 |
13.3 |
|
2.5 |
0.7 |
1 |
10 |
12.5 |
7.98 |
FG29OHM16 Cable why choose HuaDong?
Huadong Cable Group as a special FG29OHM1616 Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in FG29OHM16 Cable, but also we have 15 senior engineers, they can free design the FG29OHM16 Cable size according to client’s requirement.
Our FG29OHM16 Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
